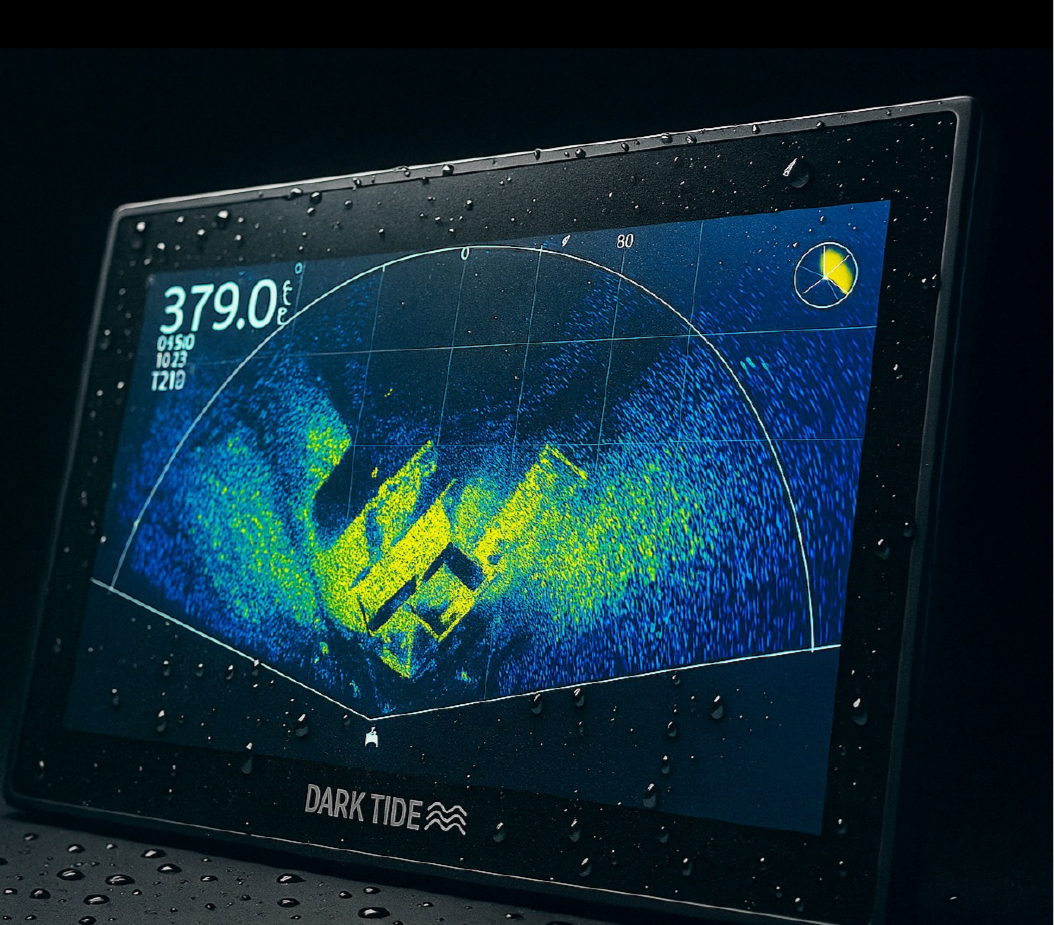

Premium 18.5" Marine Display - Compatible with Your Garmin Unit. Australian owned and operated.



LCD Panel

Clarity at its finest

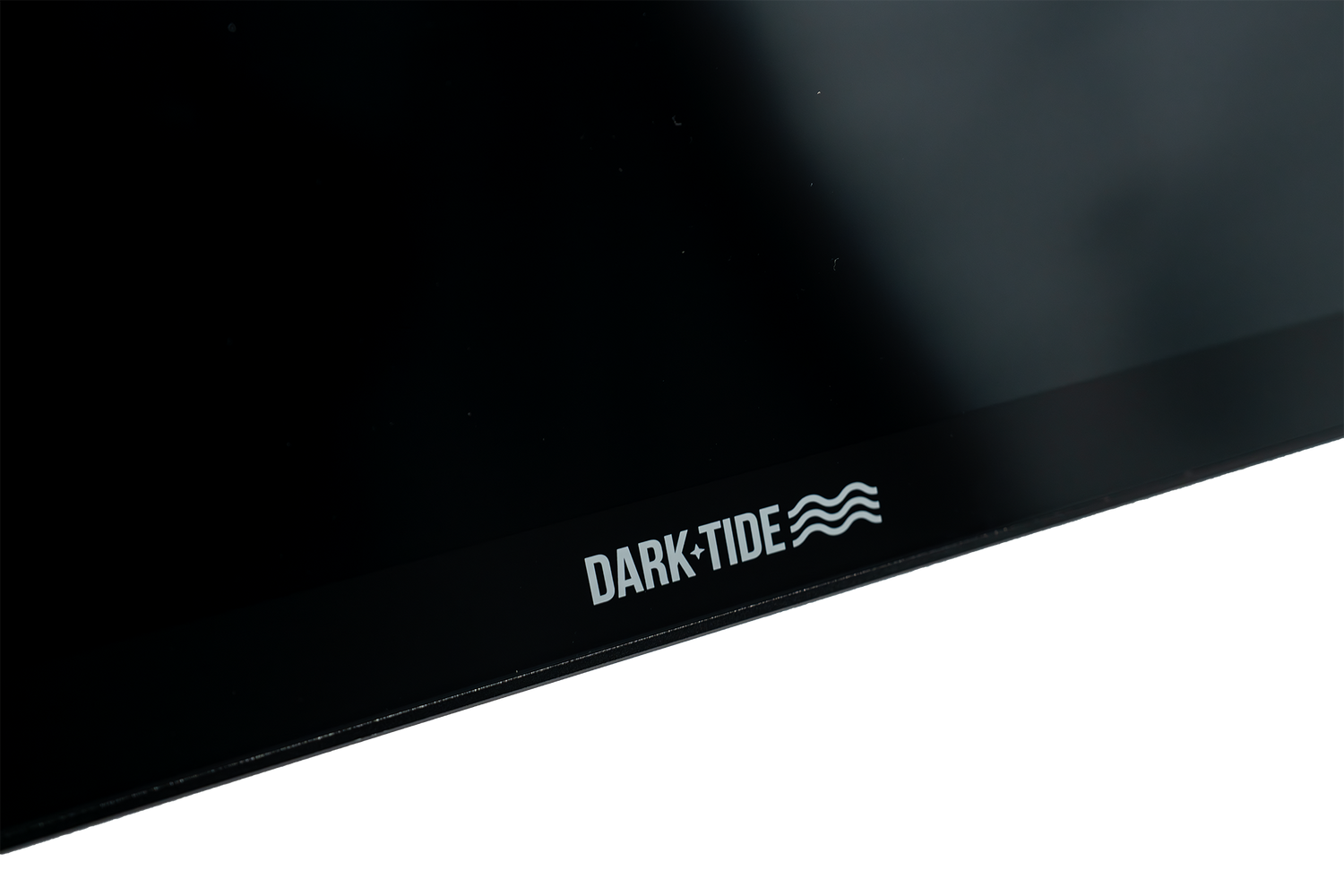

Experience crystal-clear visuals with our high-resolution LCD panel, designed for sharp image clarity, vibrant colors, and reliable performance.

touch panel

10 Points Projected Capacitive Touch

Enhance interactivity with our 10-point touch panel, allowing seamless multi-touch gestures for a smooth, responsive user experience.
Shop Now

M16 Waterproof Interface

For the worst of weather

Built to withstand the elements, our IP67-rated waterproof interface screen is perfect for harsh and outdoor environments. Dust-tight and fully protected against water immersion, it delivers reliable performance in rain, wash-down areas, and rugged conditions—without compromising on clarity or touch responsiveness.

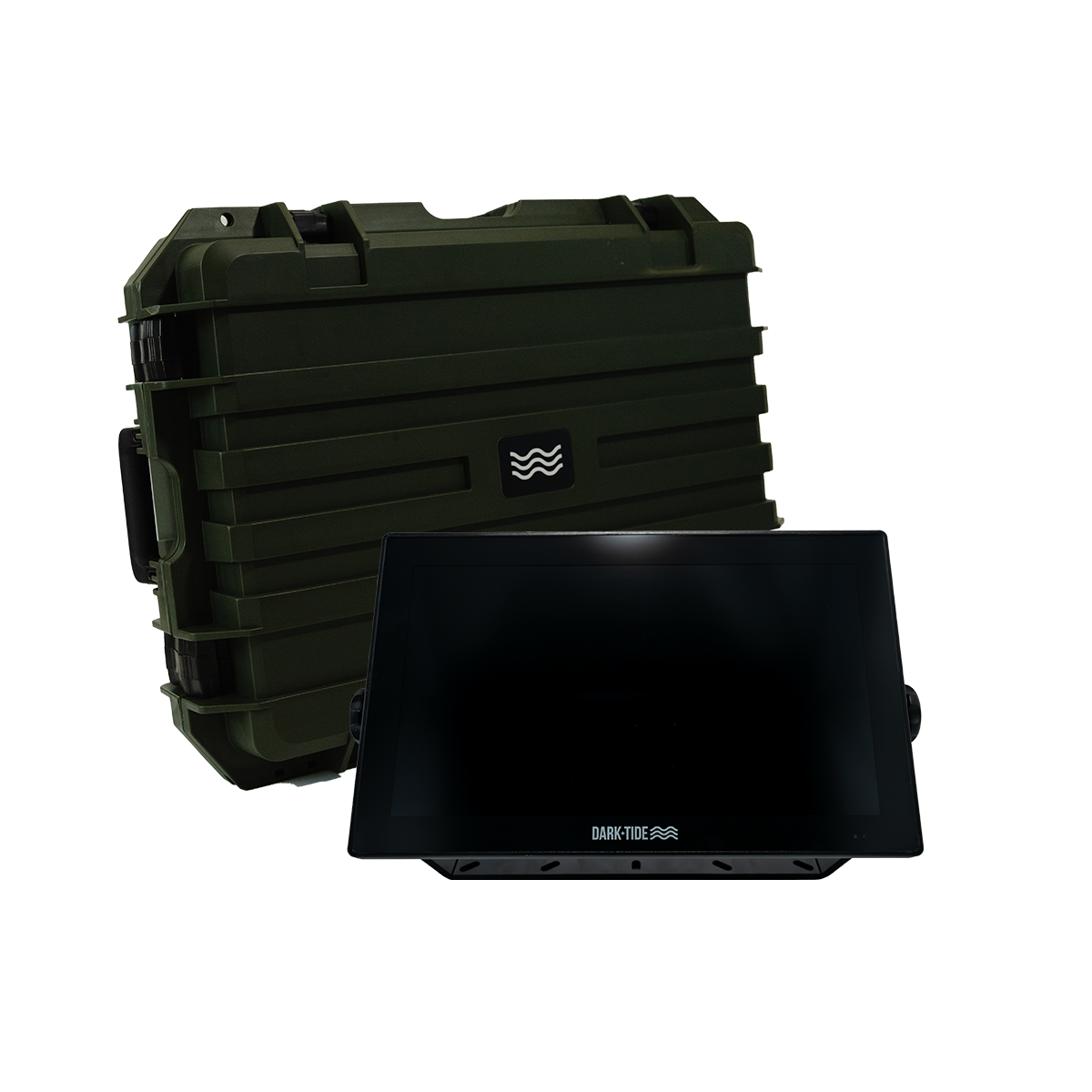

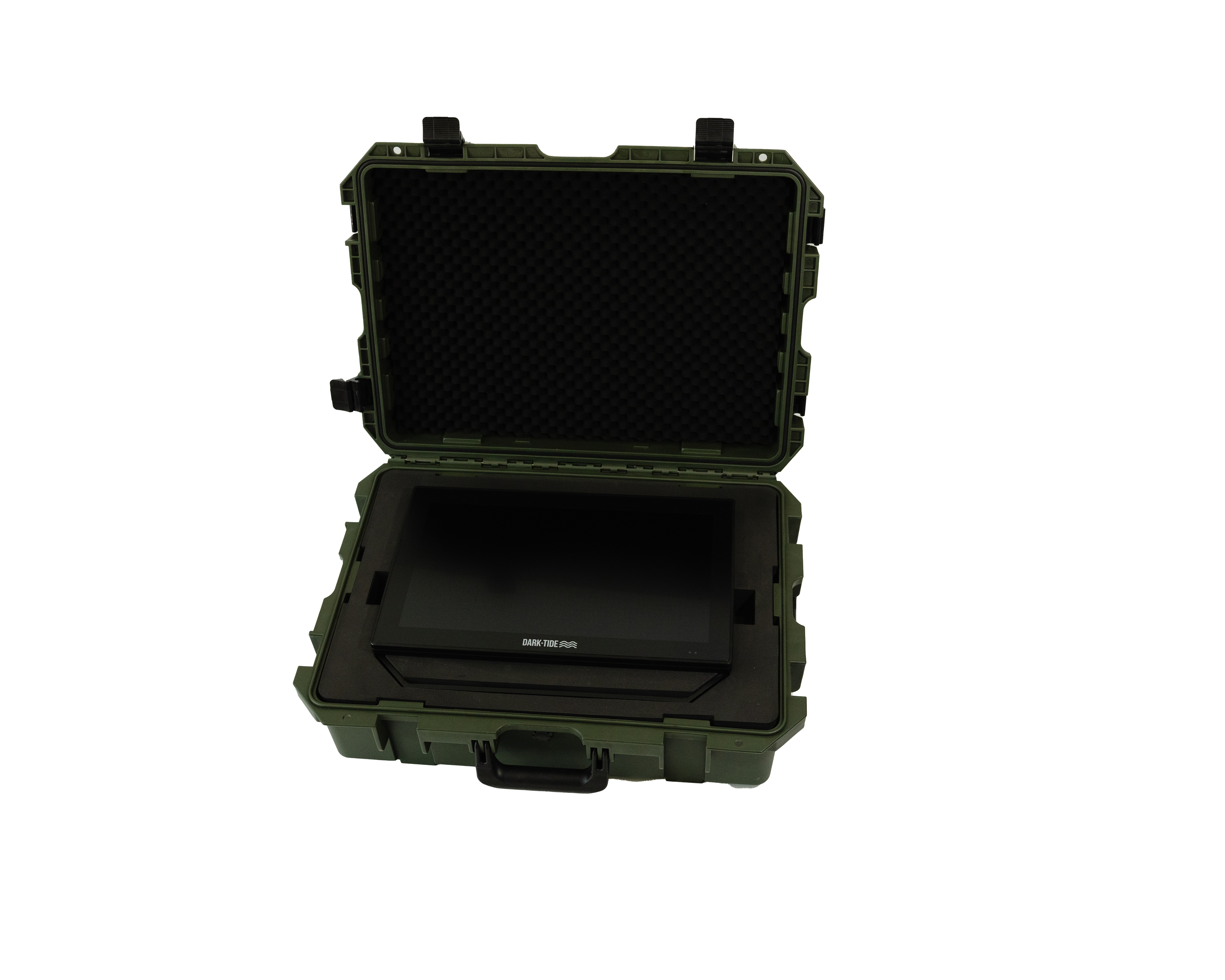

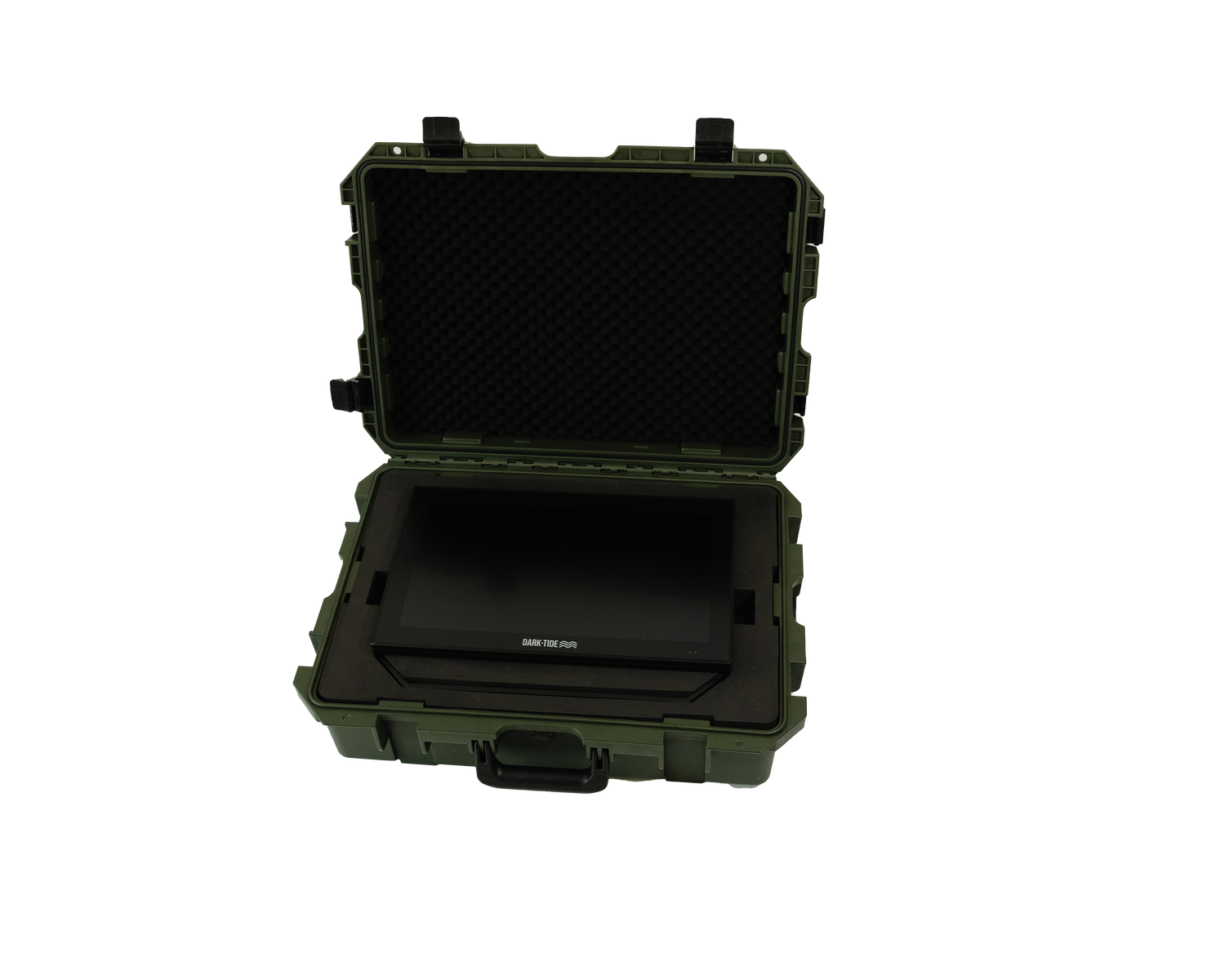

  • Black and green storage case for Dark Tide Screen. Hard case comes with the unit when you purchase it.

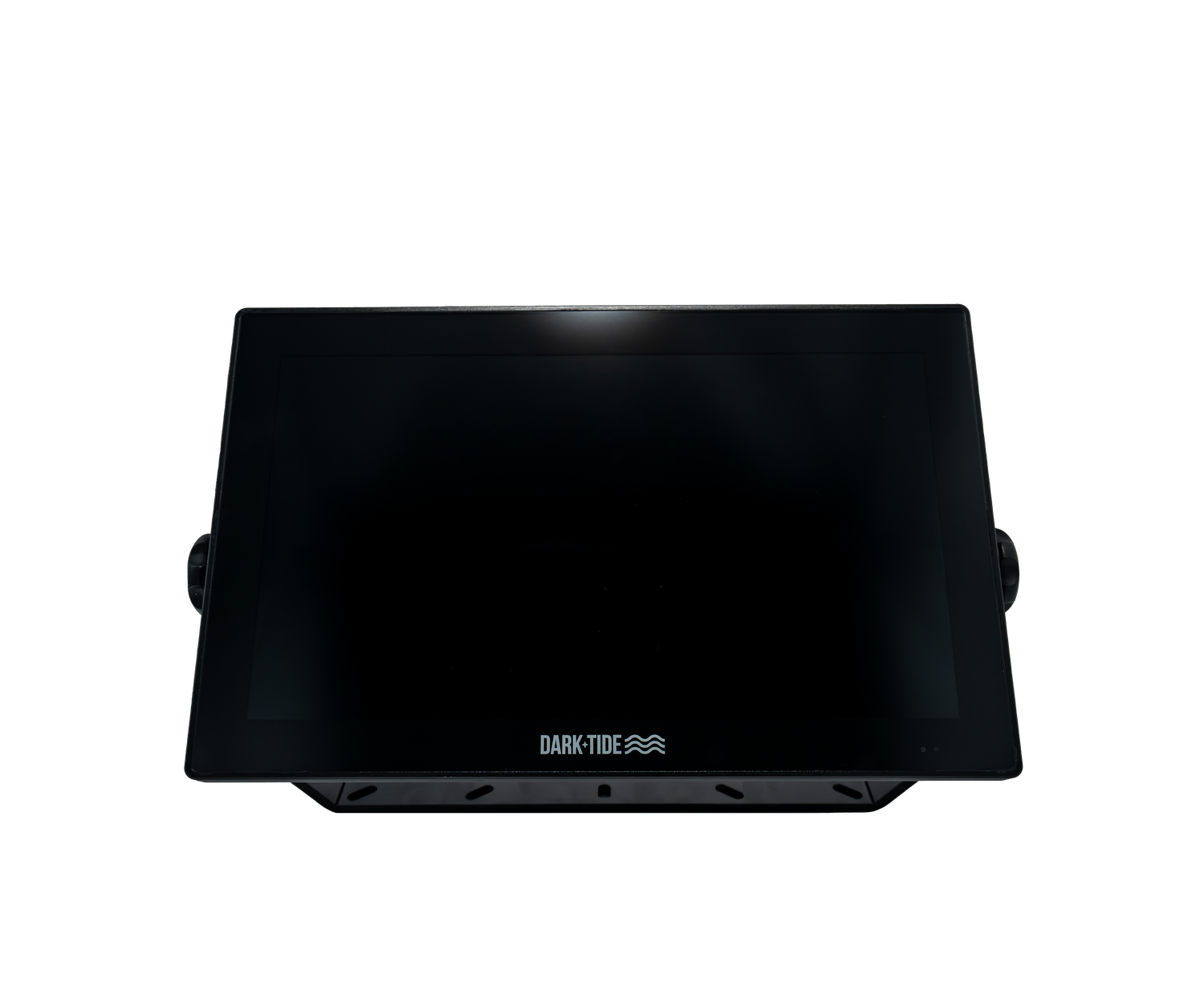

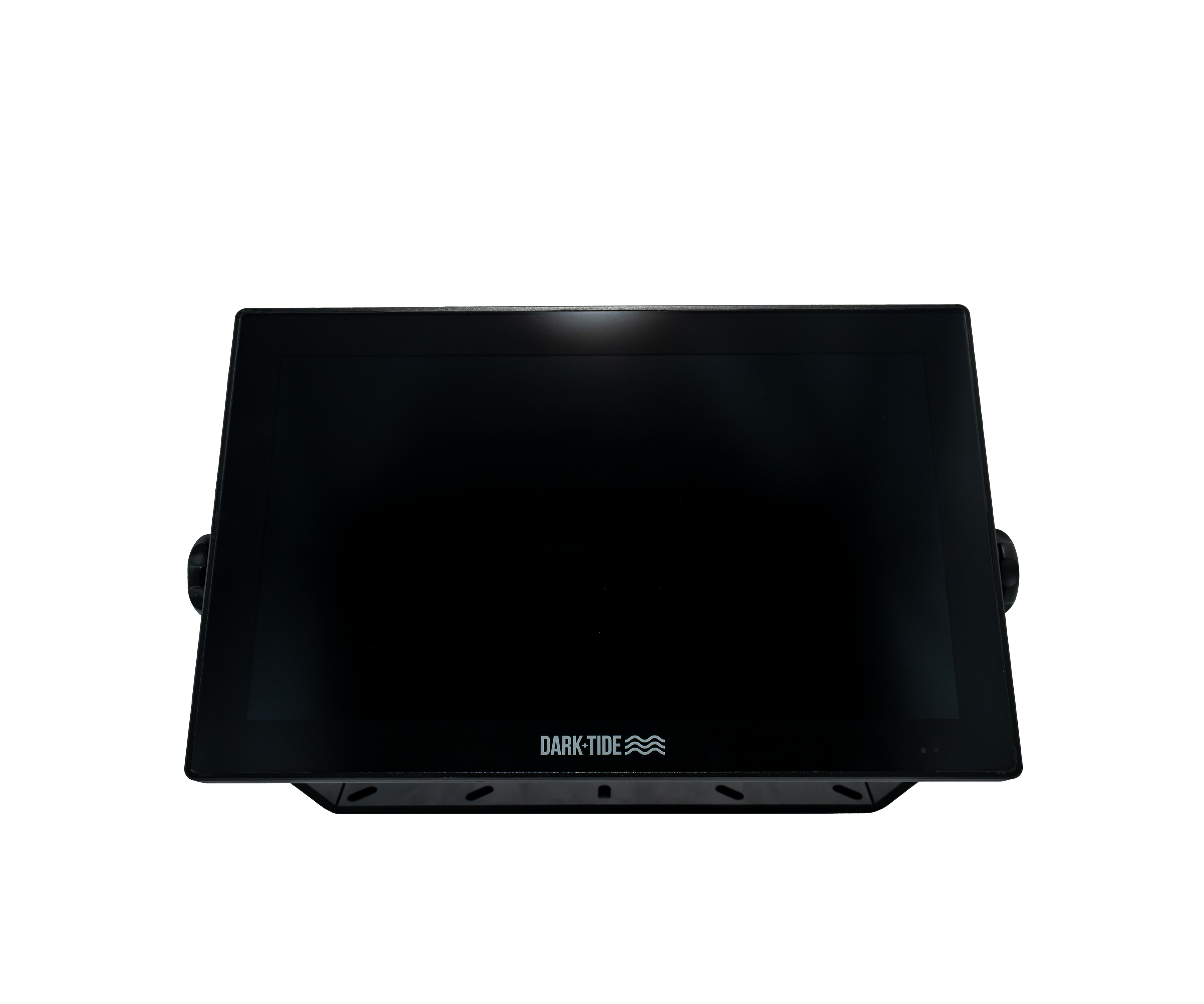

  • Black electronic Dark Tide Screen designed to connect to Garmin Sounders

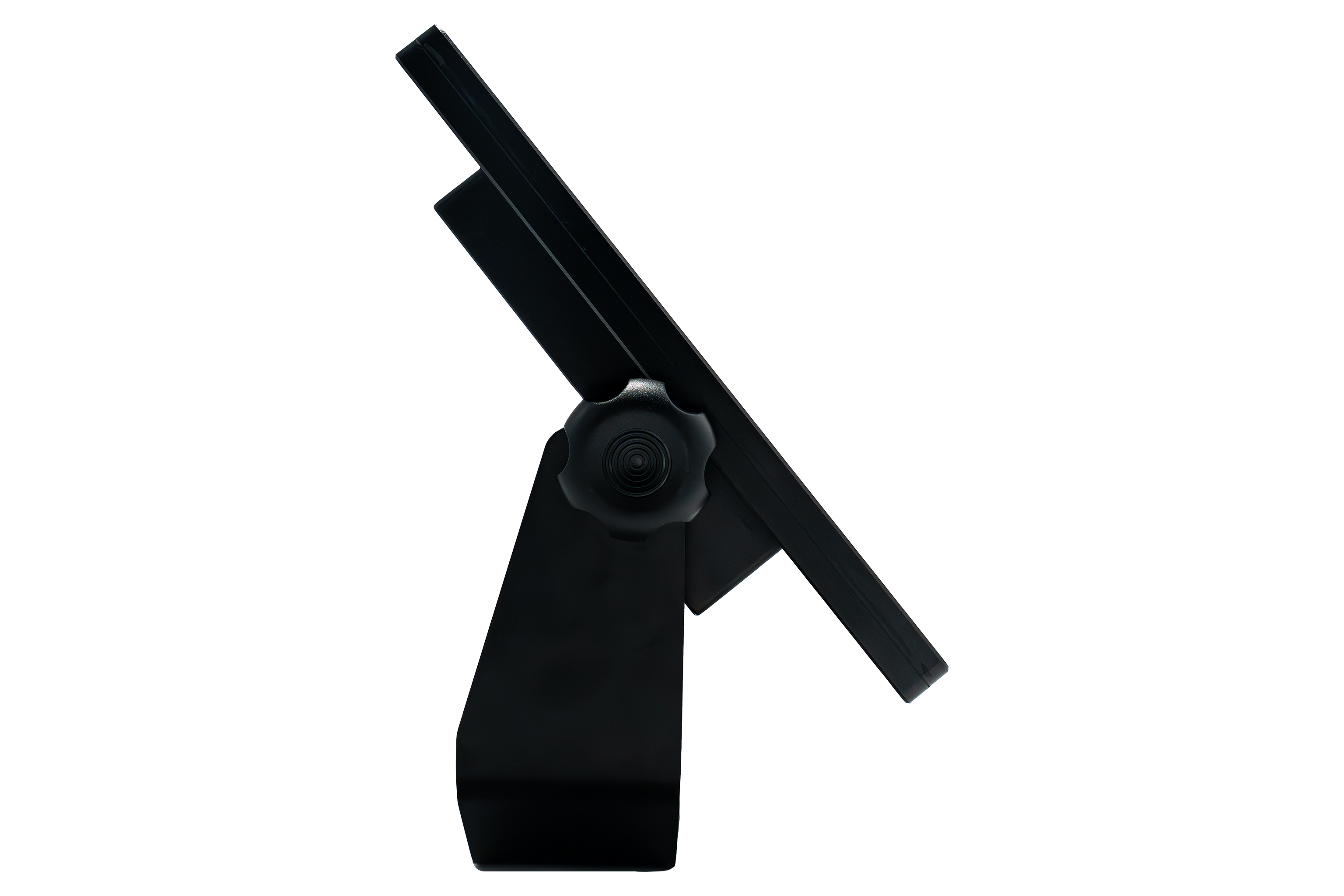

  • Dark Tide Marine Smart Display With Hard Case
  • Dark Tide Marine Smart Display With Hard Case
  • Dark Tide Marine Smart Display With Hard Case
  • Dark Tide Marine Smart Display With Hard Case
  • Dark Tide Marine Smart Display With Hard Case
  • Dark Tide Marine Smart Display With Hard Case
  • Dark Tide Marine Smart Display With Hard Case
  • Dark Tide Marine Smart Display With Hard Case
  • Dark Tide Marine Smart Display With Hard Case
  • Dark Tide Marine Smart Display With Hard Case

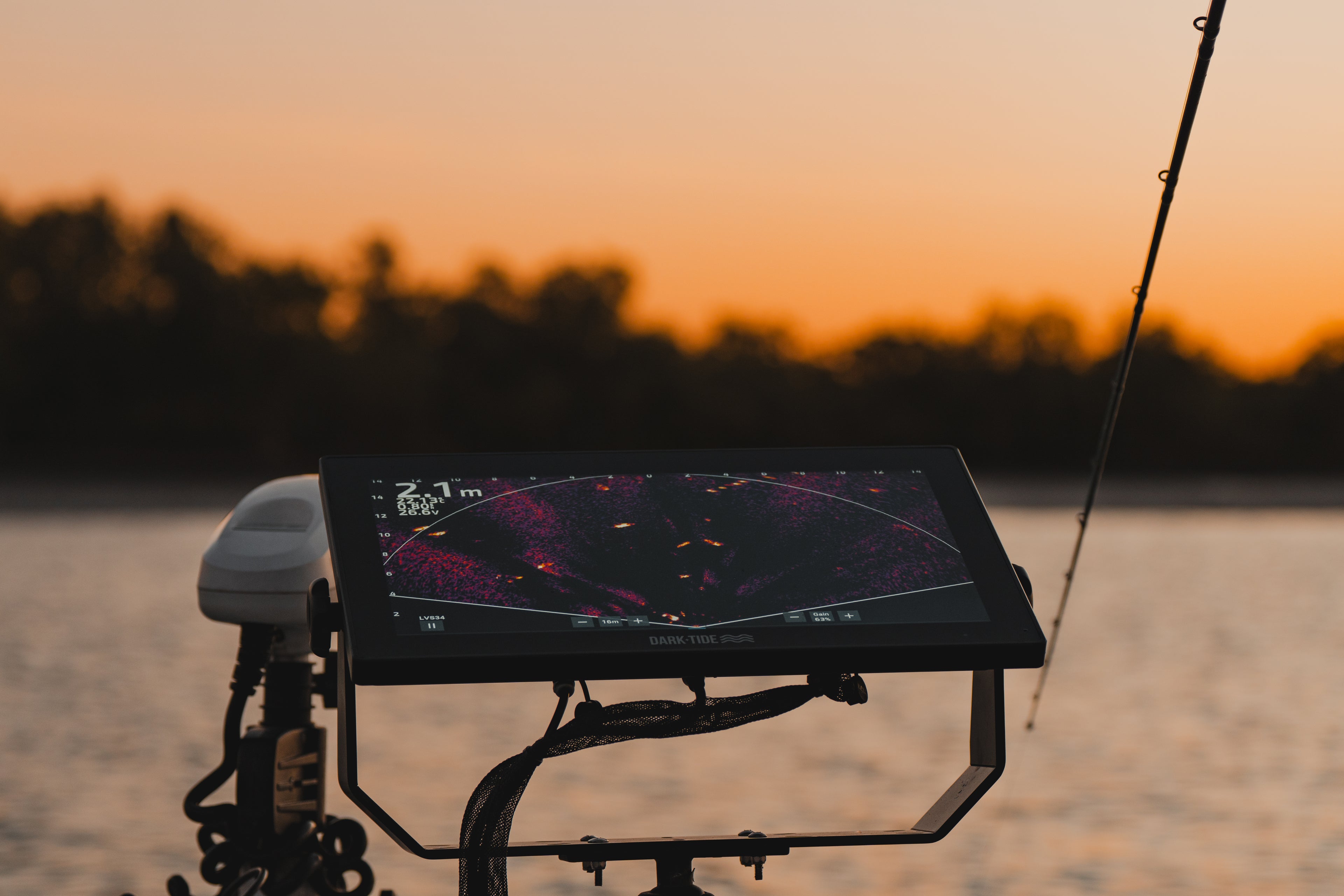

  • Fishing for barramundi at sunset using the dark tide marine screen

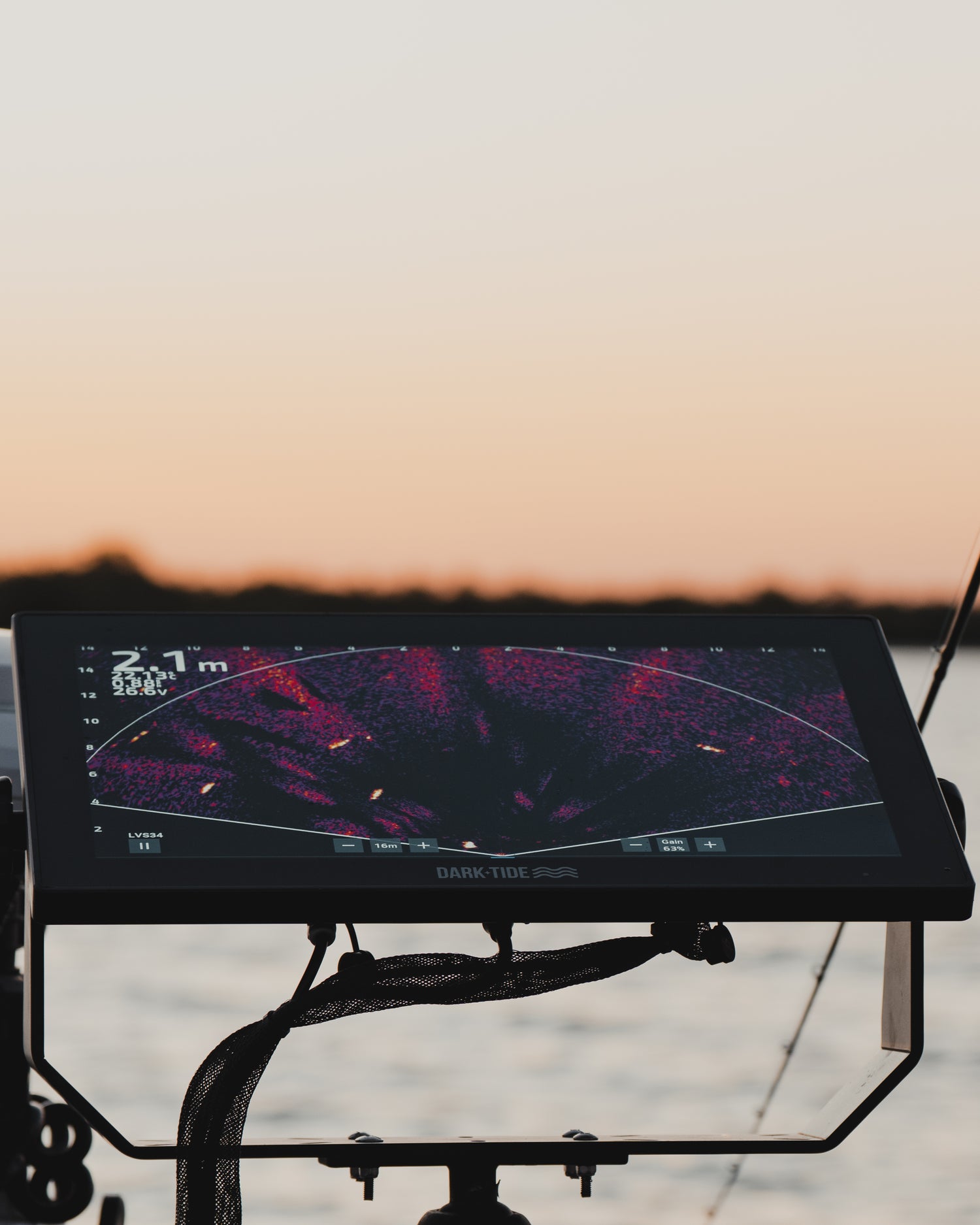

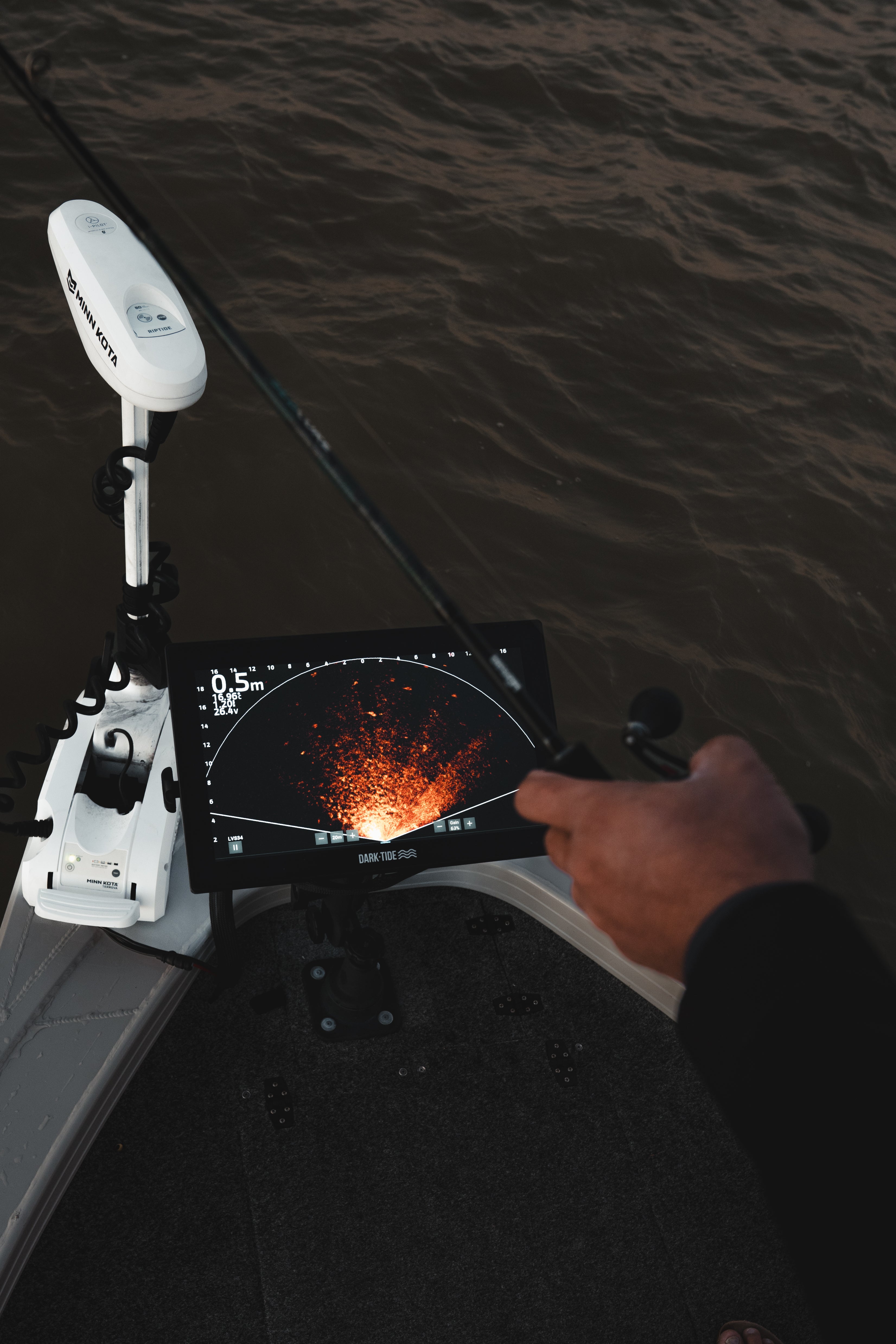

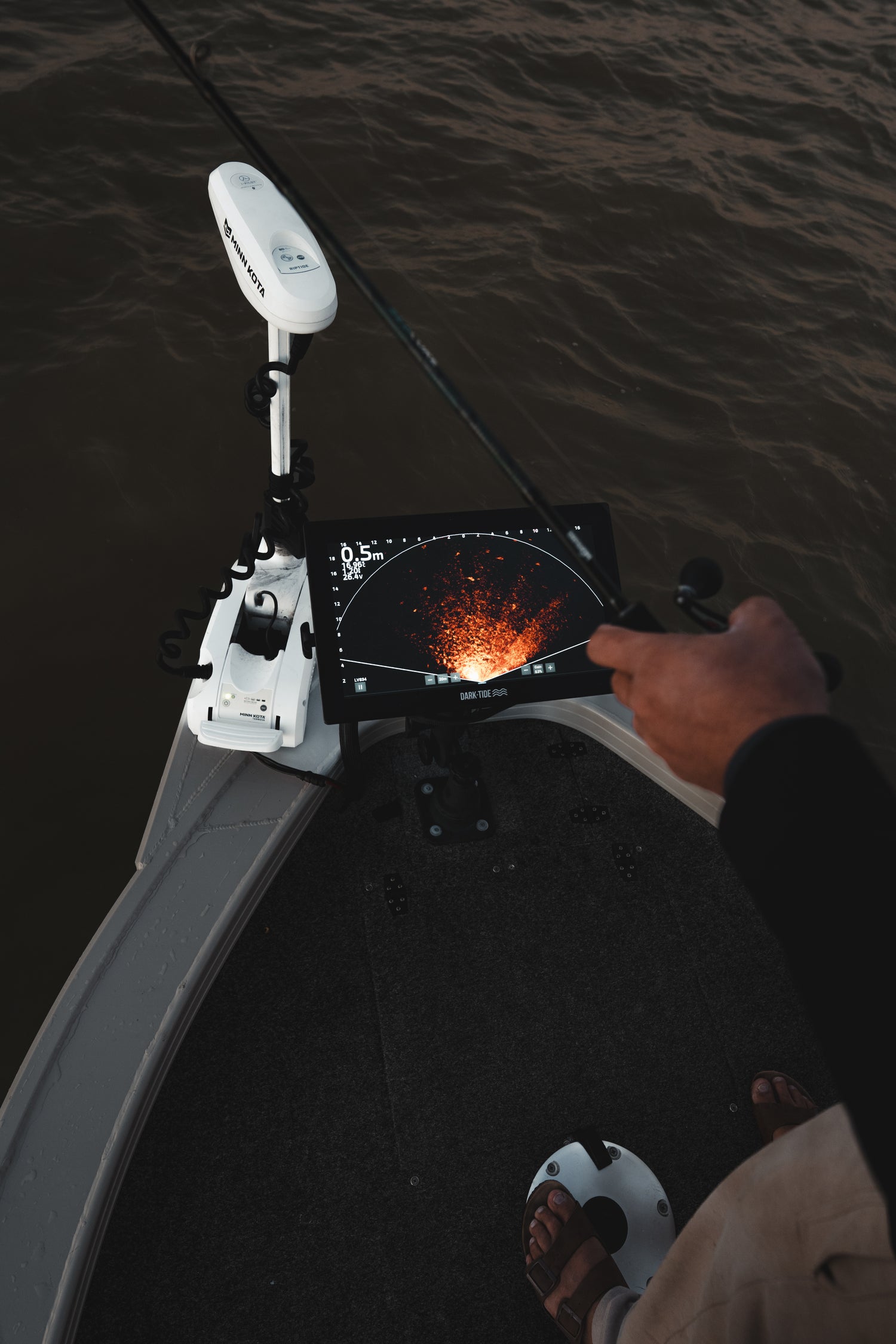

  • Dark Tide Marine Mirror Screen Fishing for Barramundi

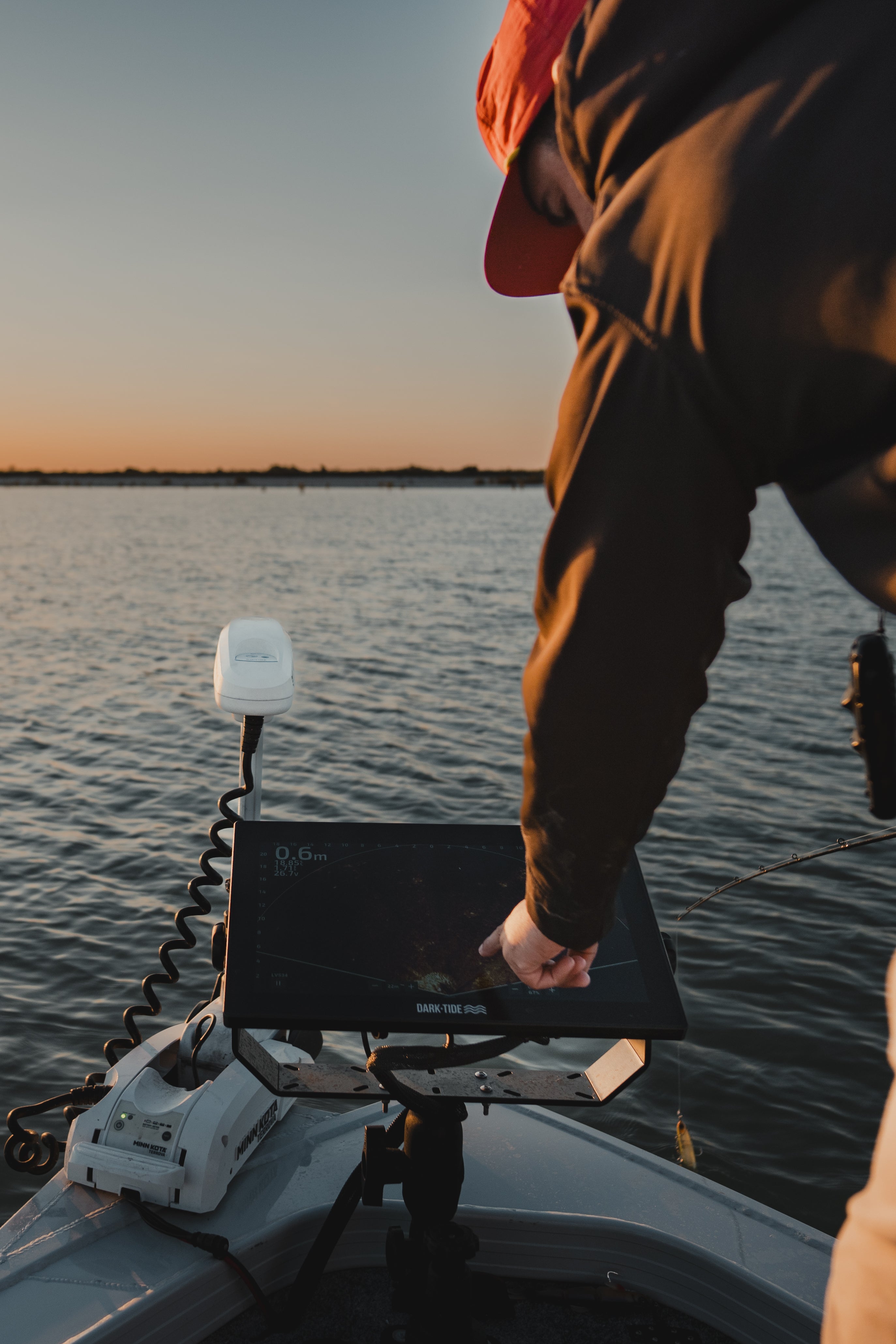

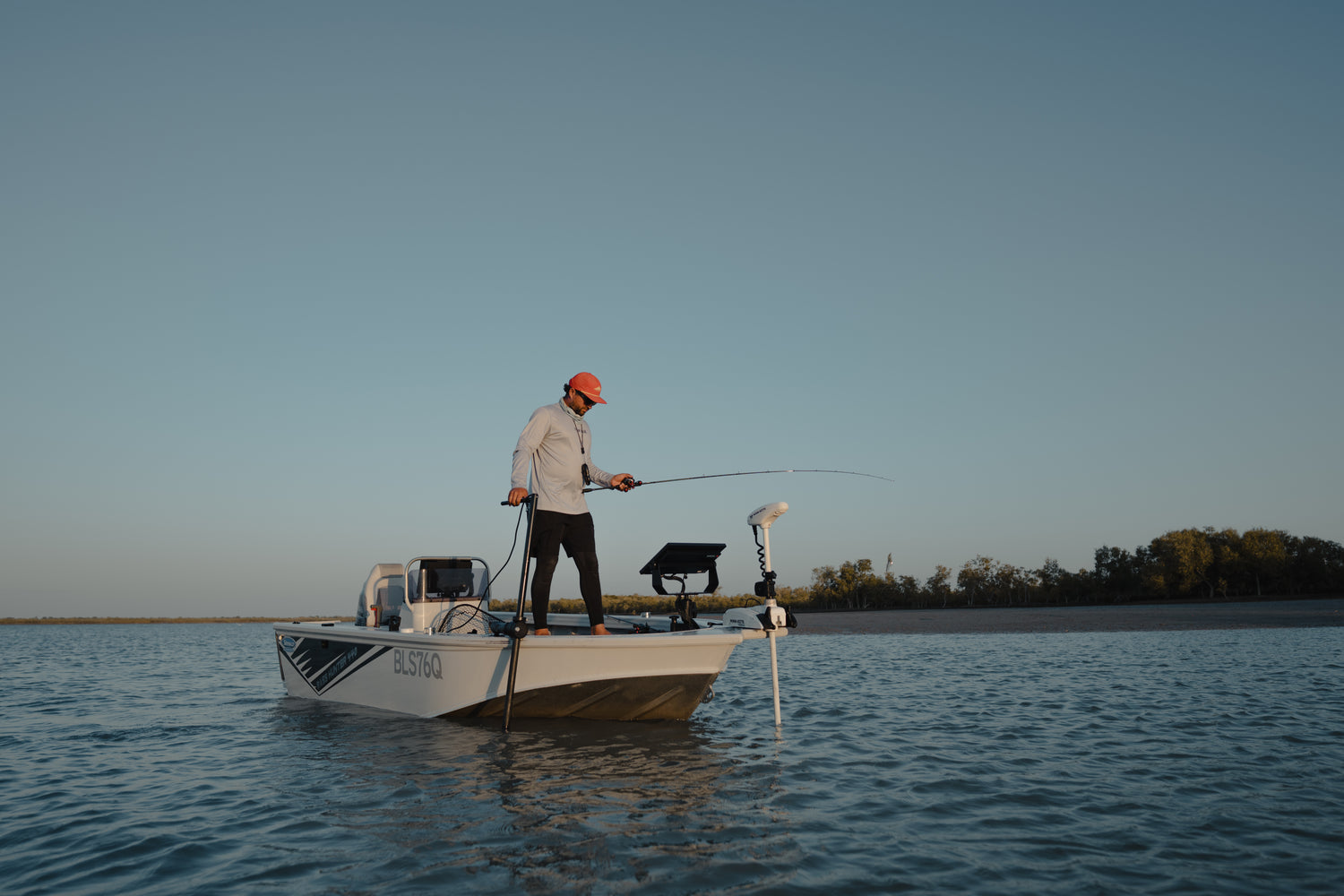

  • Dark Tide Marine Mirror Screen to Garmin GPS Map 84 series
  • Pelagic Pursuit fishing in Queensland using the Dark Tide Marine Mirror screen on his tinny

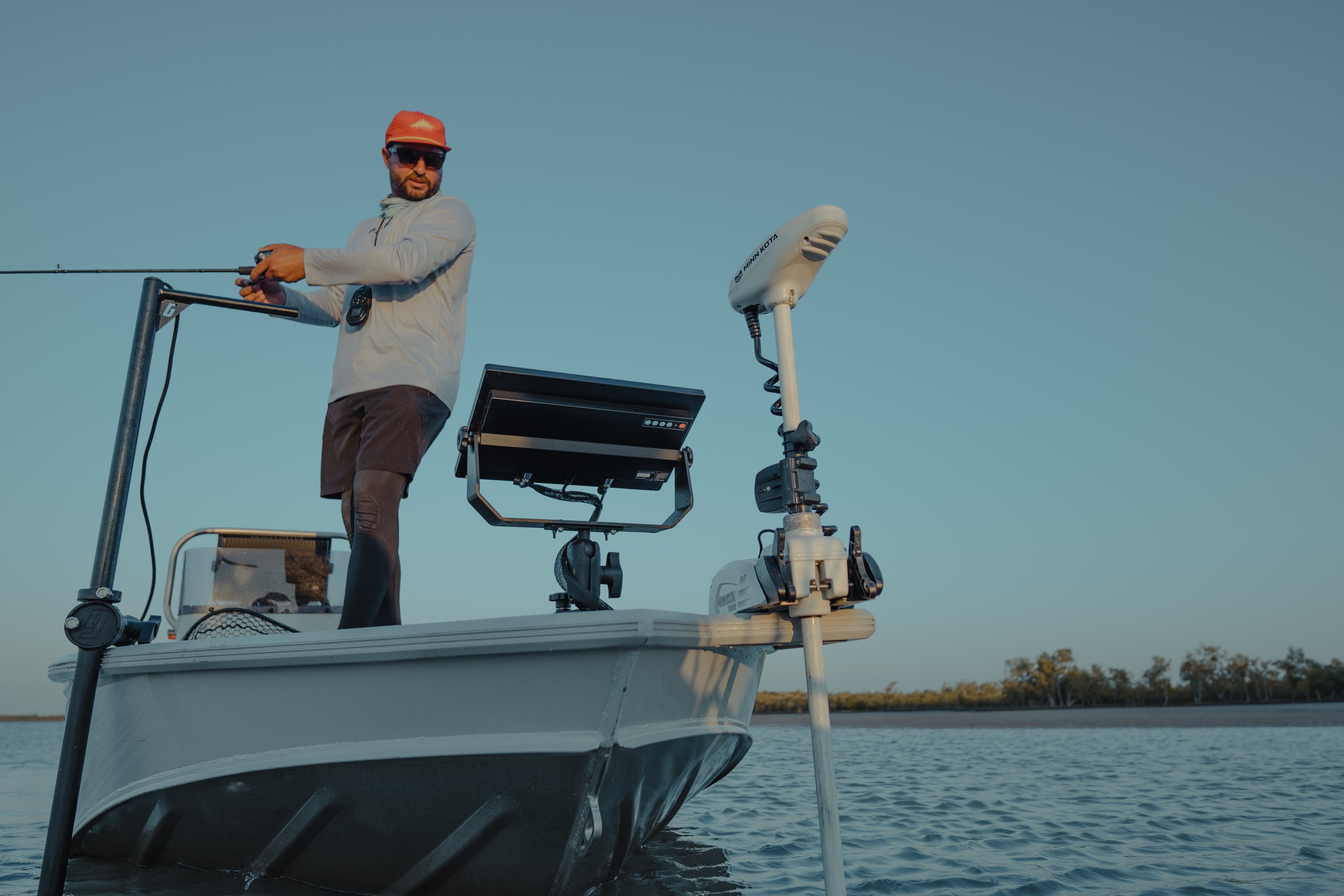

  • Pelagic pursuit fishing with the Dark Tide Marine Screen in North Queensland
1 17

Dark Tide Marine Smart Display With Hard Case

$3,499.00
$3,499.00
Shipping calculated at checkout.

Compatible with:

Garmin GPS Map 84 Series

Garmin GPS Map 53 Series

Garmin Echo Ultra 2 16" (mirror only)

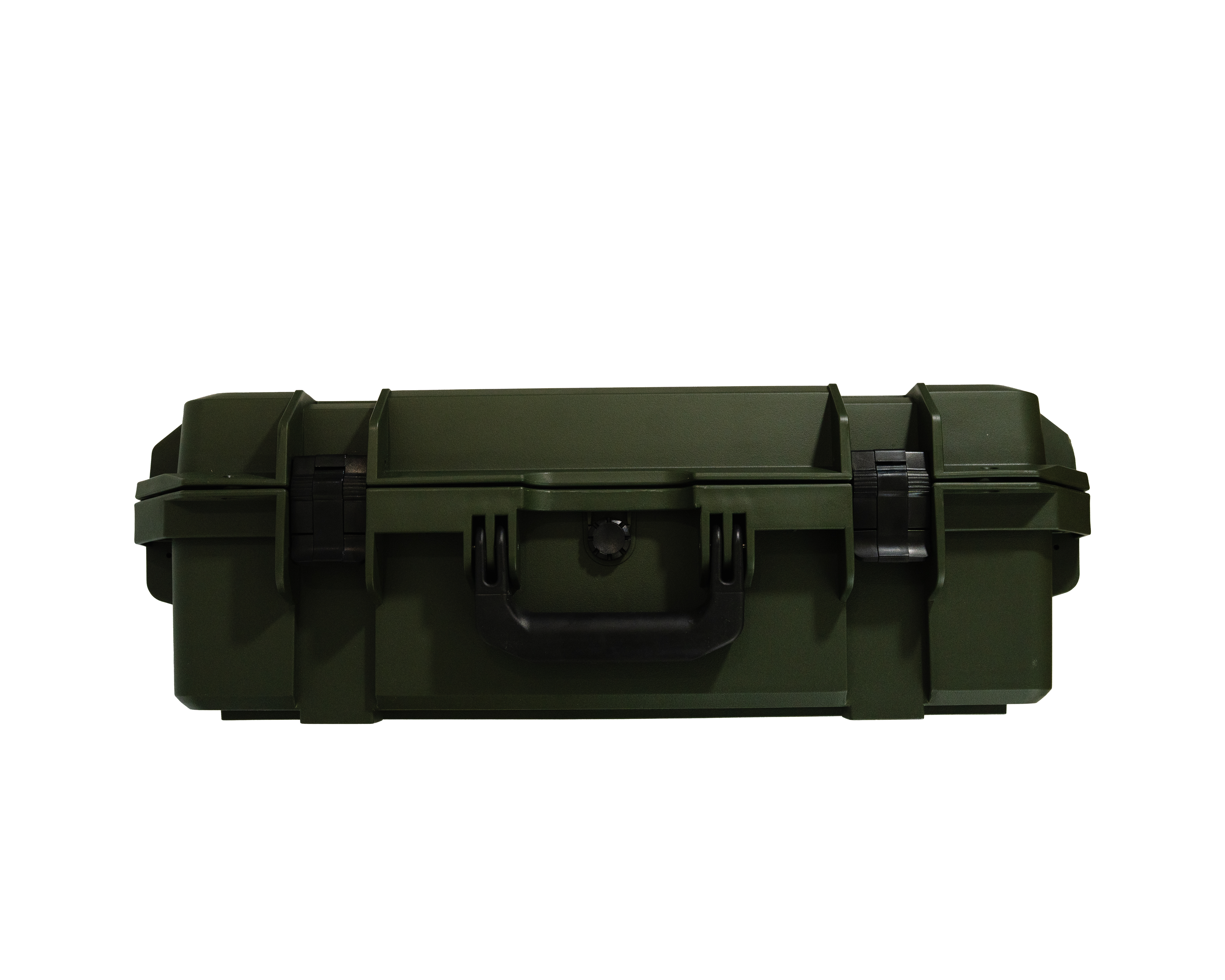

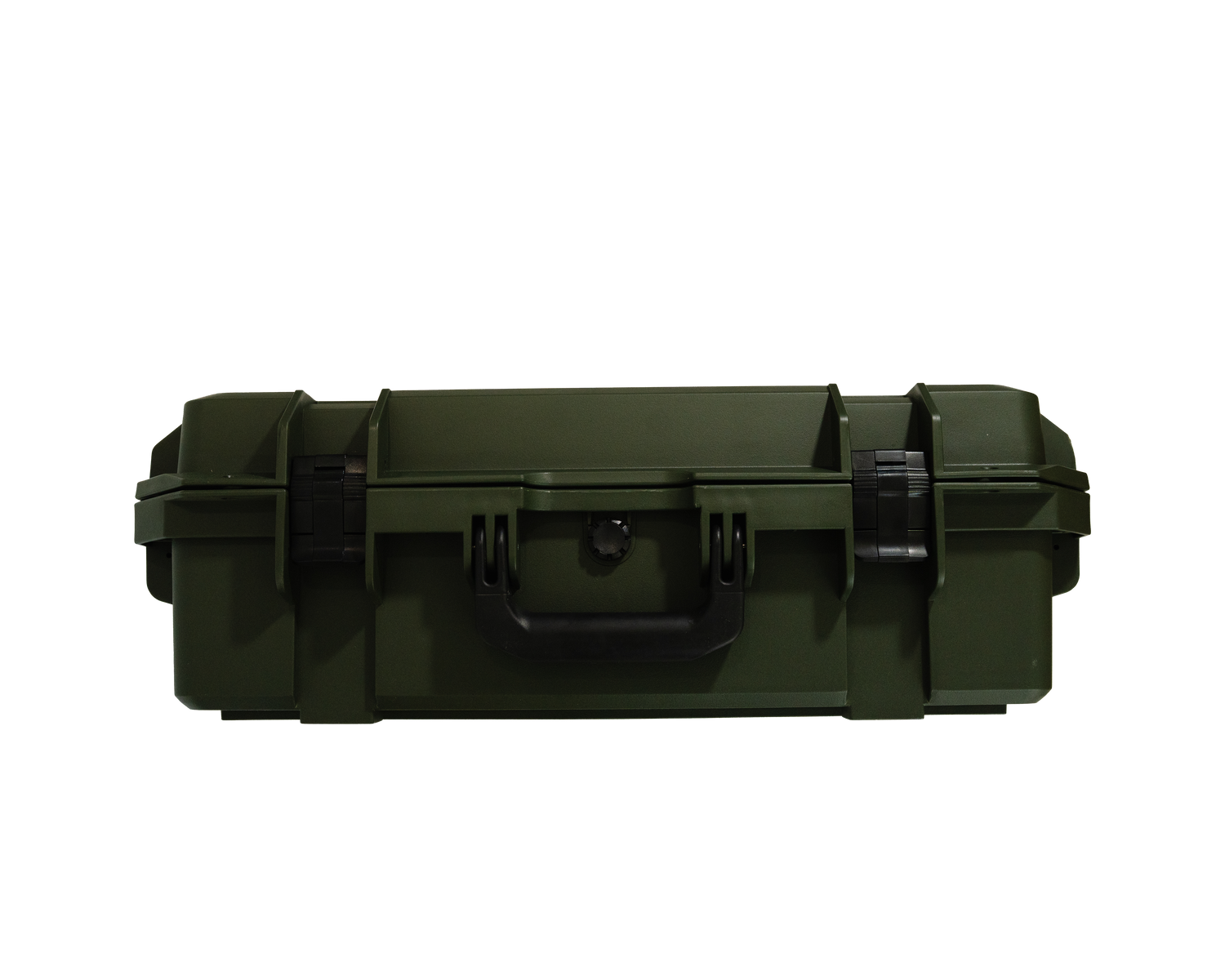

    Black and green storage case for Dark Tide Screen. Hard case comes with the unit when you purchase it.

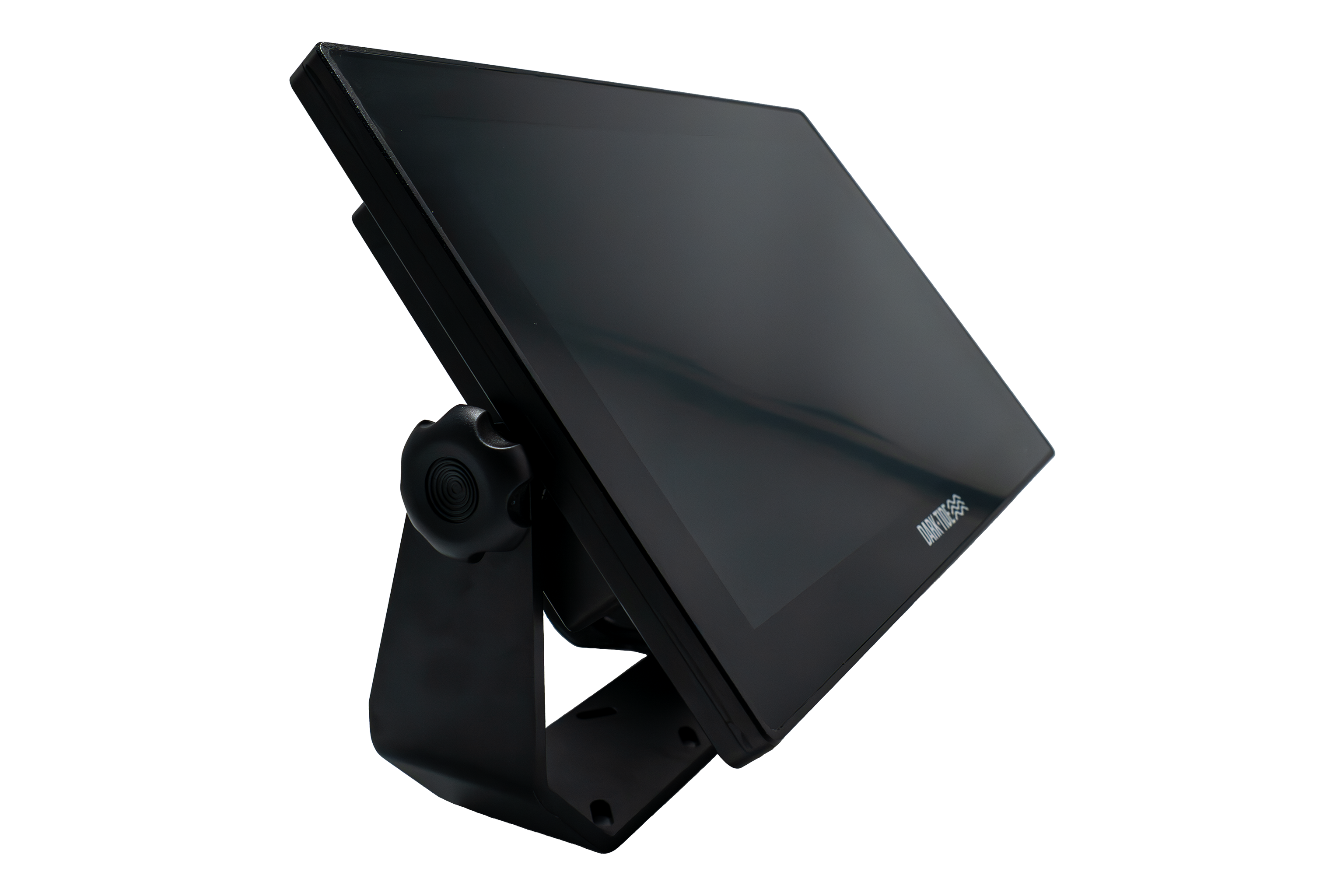

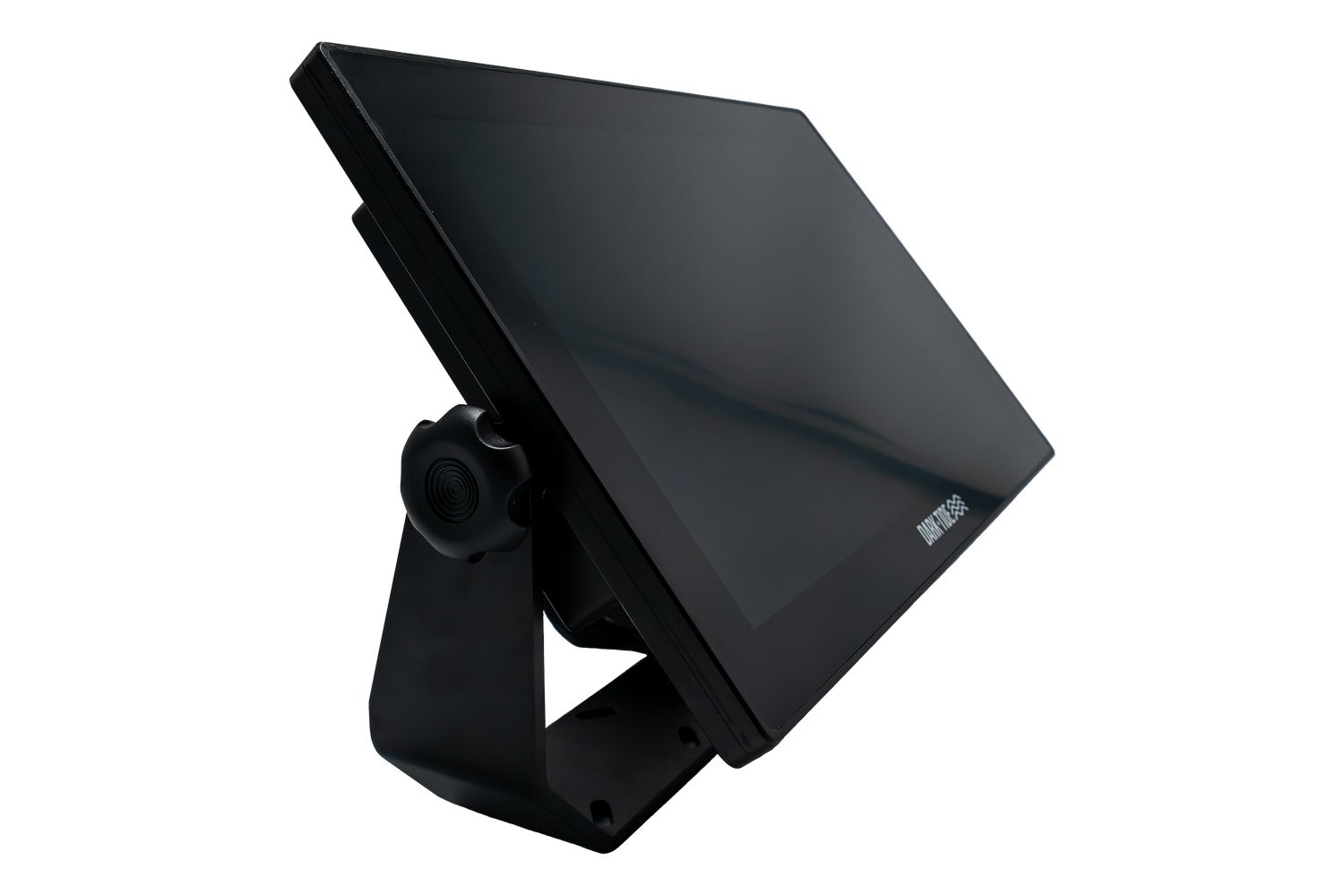

    Black electronic Dark Tide Screen designed to connect to Garmin Sounders
    Dark Tide Marine Smart Display With Hard Case
    Dark Tide Marine Smart Display With Hard Case
    Dark Tide Marine Smart Display With Hard Case
    Dark Tide Marine Smart Display With Hard Case
    Dark Tide Marine Smart Display With Hard Case
    Dark Tide Marine Smart Display With Hard Case
    Dark Tide Marine Smart Display With Hard Case
    Dark Tide Marine Smart Display With Hard Case
    Dark Tide Marine Smart Display With Hard Case
    Dark Tide Marine Smart Display With Hard Case

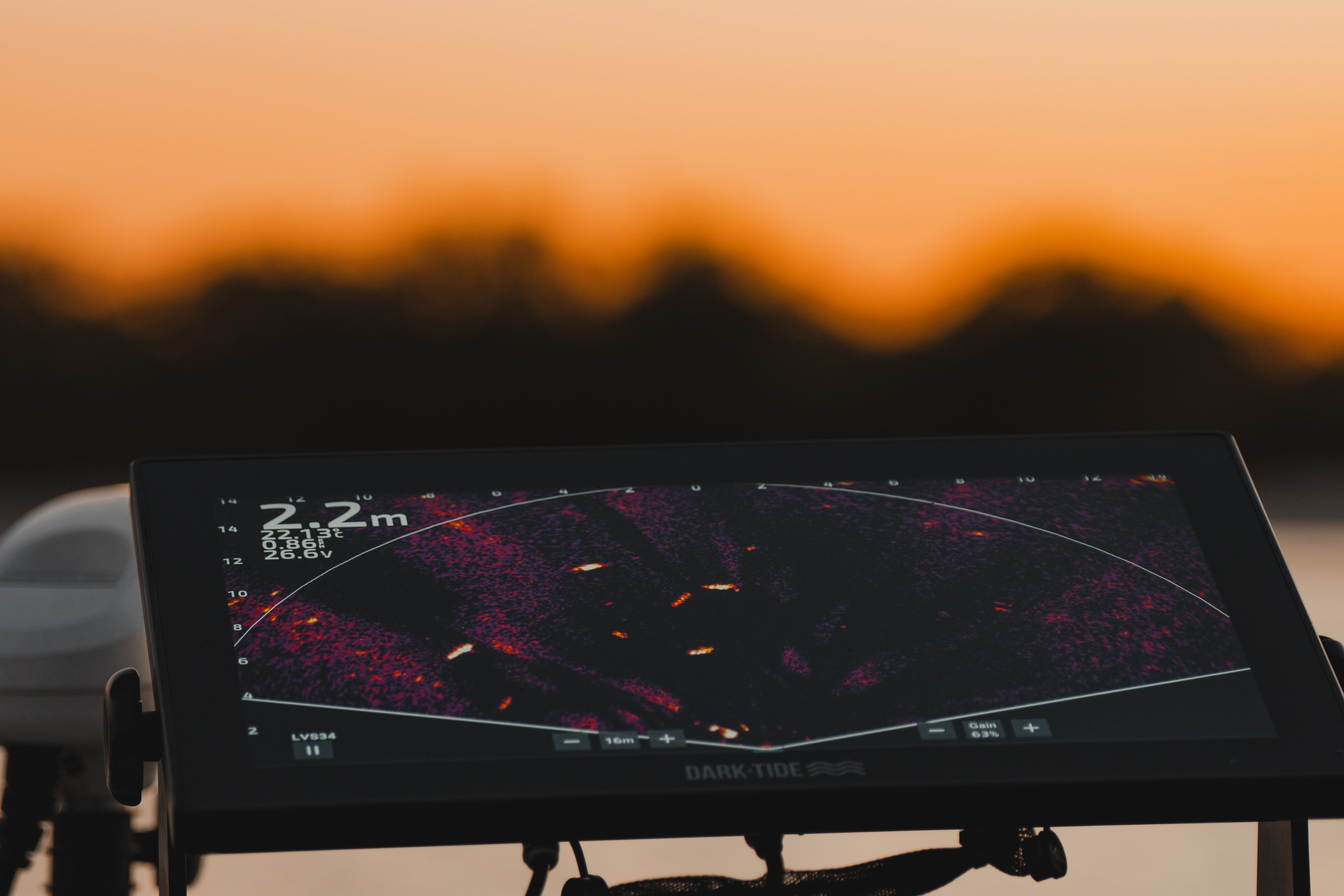

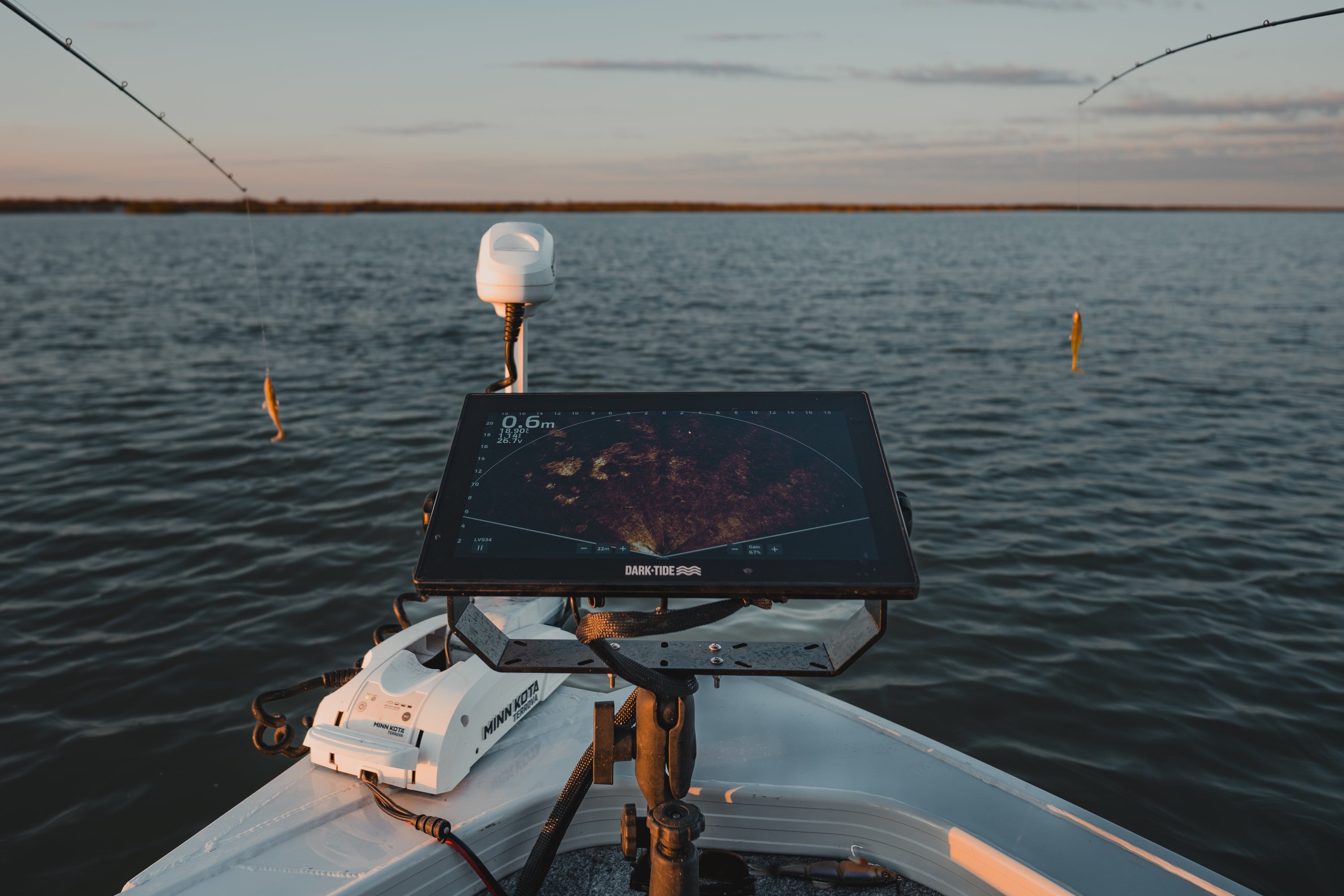

    Fishing for barramundi at sunset using the dark tide marine screen
    Dark Tide Marine Mirror Screen Fishing for Barramundi
    Dark Tide Marine Mirror Screen to Garmin GPS Map 84 series

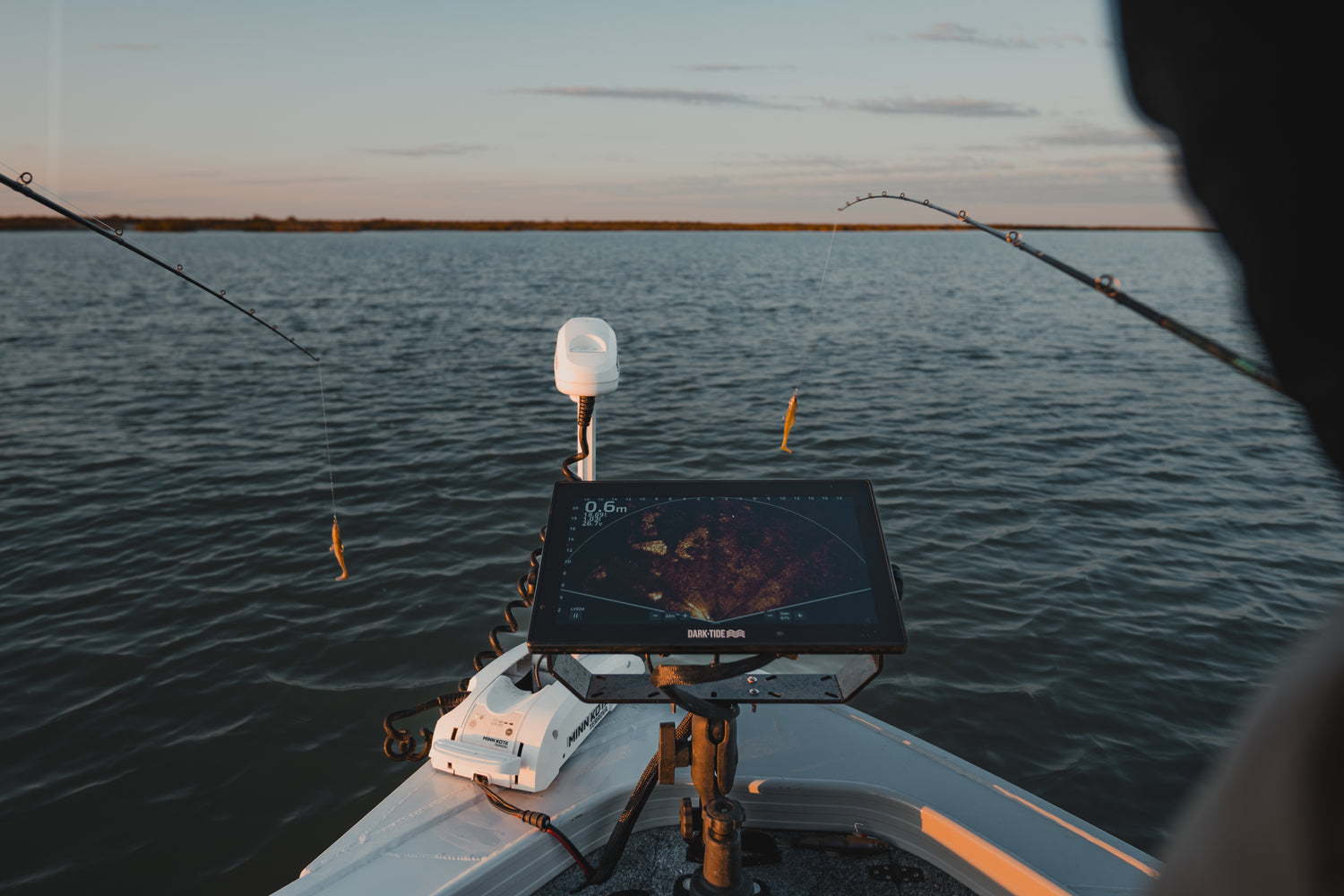

    Pelagic Pursuit fishing in Queensland using the Dark Tide Marine Mirror screen on his tinny
    Pelagic pursuit fishing with the Dark Tide Marine Screen in North Queensland

    TECH SPECS

    Rugged marine displays engineered for clarity, durability, and confidence on the water.

    Get a premium 18.5" marine display for a fraction of the cost of buying a complete sounder system. Works with your existing Garmin unit.

    Included in the box

    Hard Case

    HDMI/USB Power

    Fuse with Fuse Holder

    Dielectric Grease

    Solder Connectors

    2 Year Warranty
    LCD & Touch PANEL

    Panel Size
    18.5" (16:9)

    Native Resolution
    1920x1080 HD

    Brightness (CD/M2)
    1500 NITS

    Contrast Ratio
    1200:1

    View Angle
    89/89/89/89 Deg

    Touch Screen Type
    10 points projected capacitive touch

    Touch interface
    USB

    Surface Hardness
    7H

    Surface Treatment
    AG (Anti Glare)

    Touch Bonding
    Optical Bonding

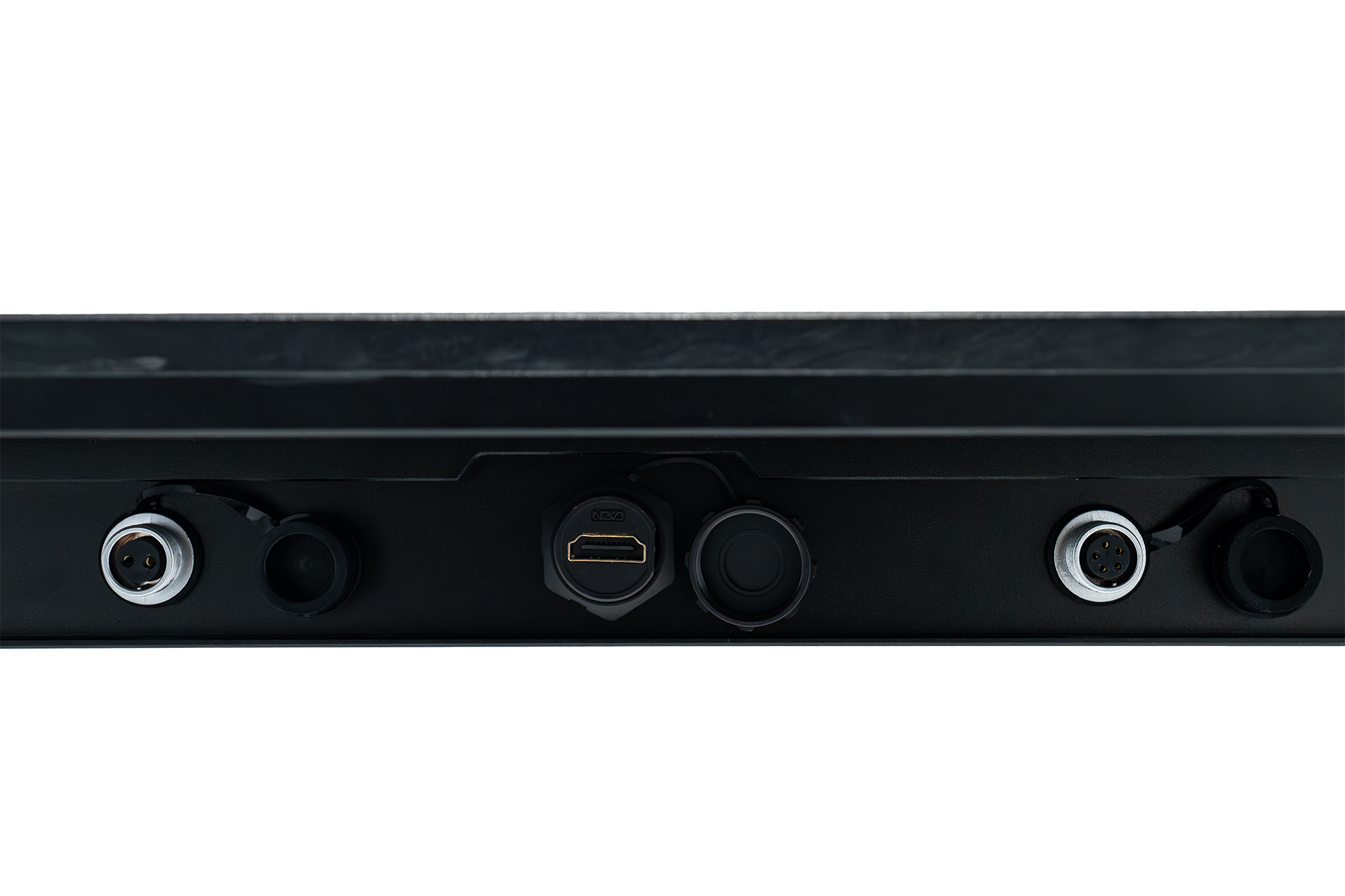

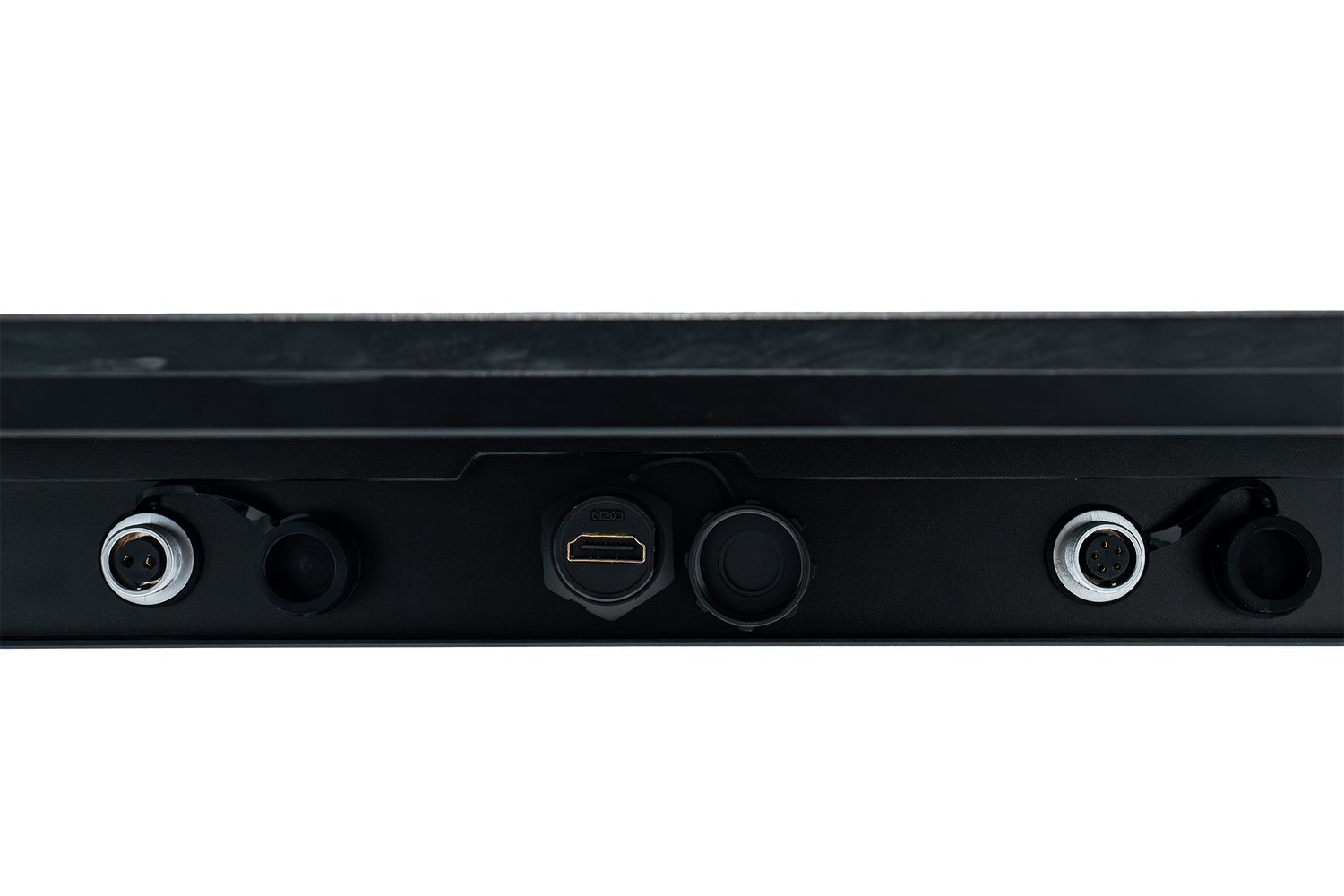

    m16 waterproof Interface

    Video Input
    1*IP67 HDMI

    Touch Screen Interface
    1*IP67 USB

    Power Connector
    1*IP67 DC / 12-24V
    OSD & Operation Environment

    Function Keys
    5 Keys: Power/ Menu/ Up/ Down/ Return

    Menu Functions
    Brightness, Contrast, Saturation, Screen Setting, Colour Temp, OSD Language, Reset

    Temperature Range
    Operating: -20 to 80 Degrees / Storage -30 to 85 degrees Celsius

    Relative Humidity
    Operating 10% to 90% / Storage 5% to 90%

    Power Connector
    1*IP67 DC/ 12-24V

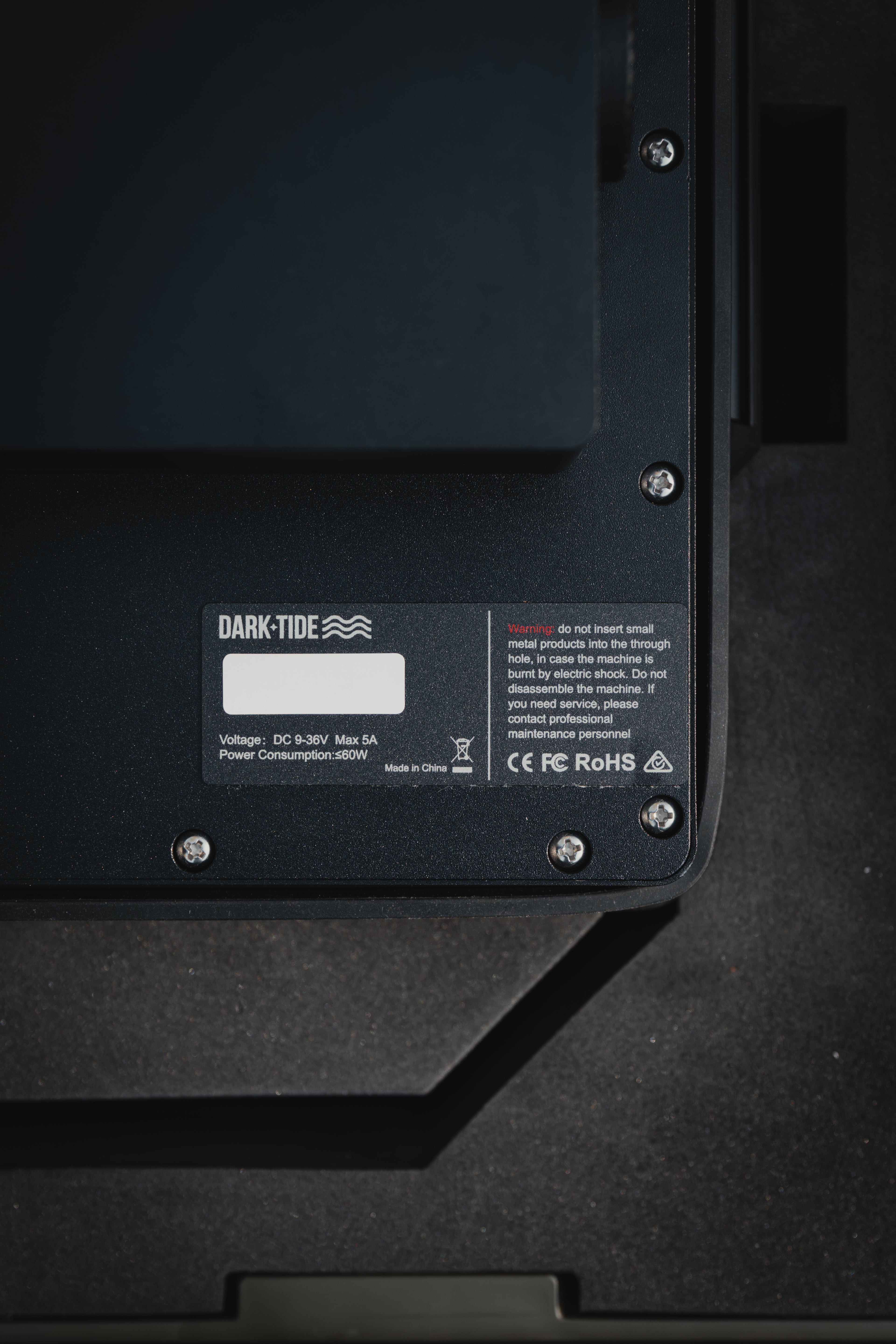

    power supply & compatibility

    Working Voltage
    12V-24V

    Power Consumption
    3 AMP at 12V / 1.5 Amp at 24V

    Garmin Compatible Devices
    GPS Map 84 Series, GPS Map 53 Series, Echomap Ultra 2 16" (mirror only)

    Find out more

    WHY DARK TIDE SMART DISPLAYS

    • LCD PANEL

    • ENVIRONMENT

    • CASING

    • ON SCREEN DISPLAY

    • COMPATIBLE DEVICES

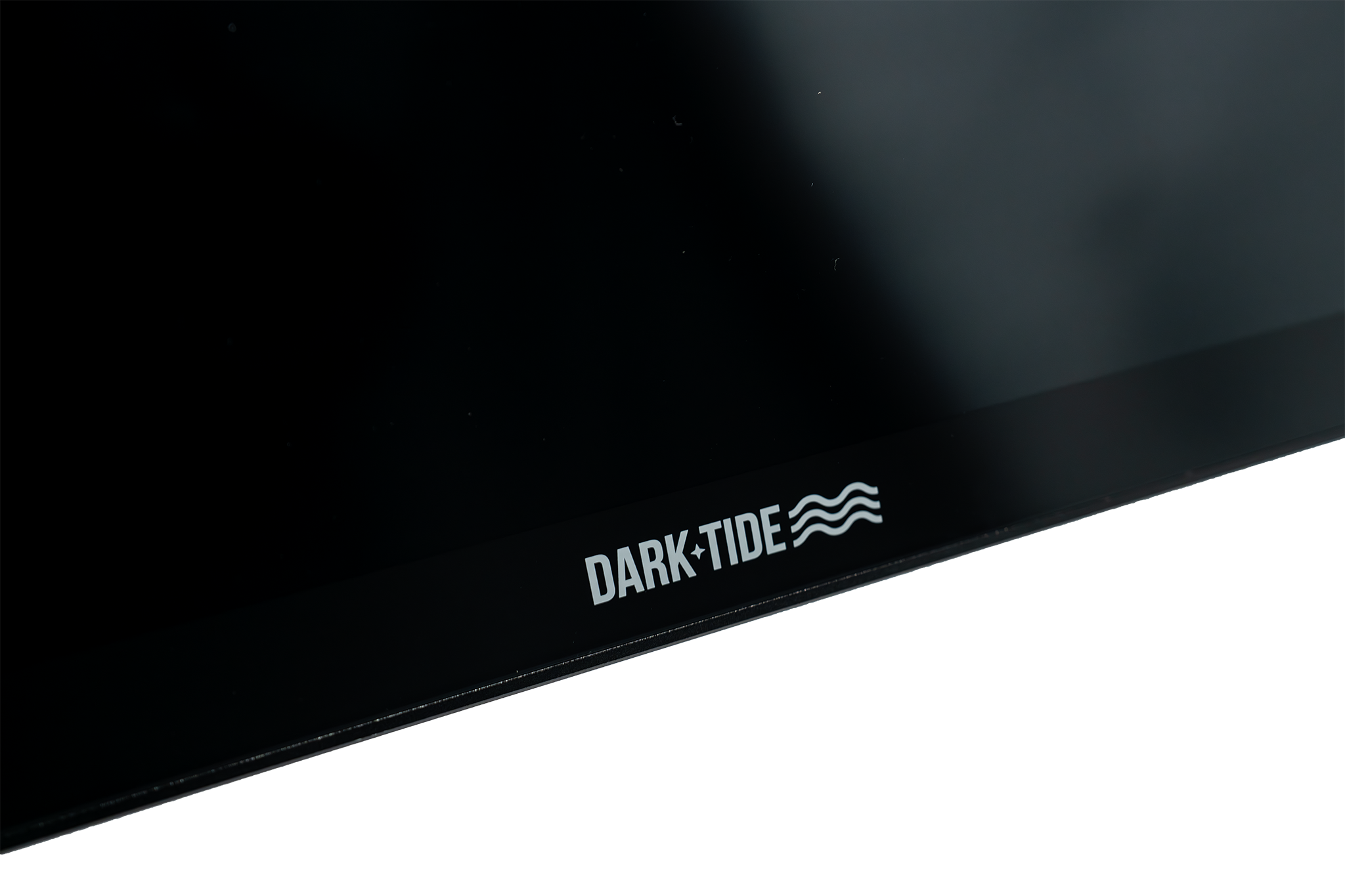

    The Dark Tide 18.5" display offers crystal-clear visibility and an ideal size that makes it easy to see and operate, even in challenging conditions.

    The Dark Tide Marine display is built for durability in demanding environments, with an operating temperature range of -20°C to 80°C and storage capacity from -30°C to 85°C.

    It withstands humidity levels from 10% to 90% in use, and 5% to 90% in storage, ensuring reliability in extreme conditions. Featuring a secure IP67-rated DC power connector (12–24V), it delivers consistent performance in marine applications.

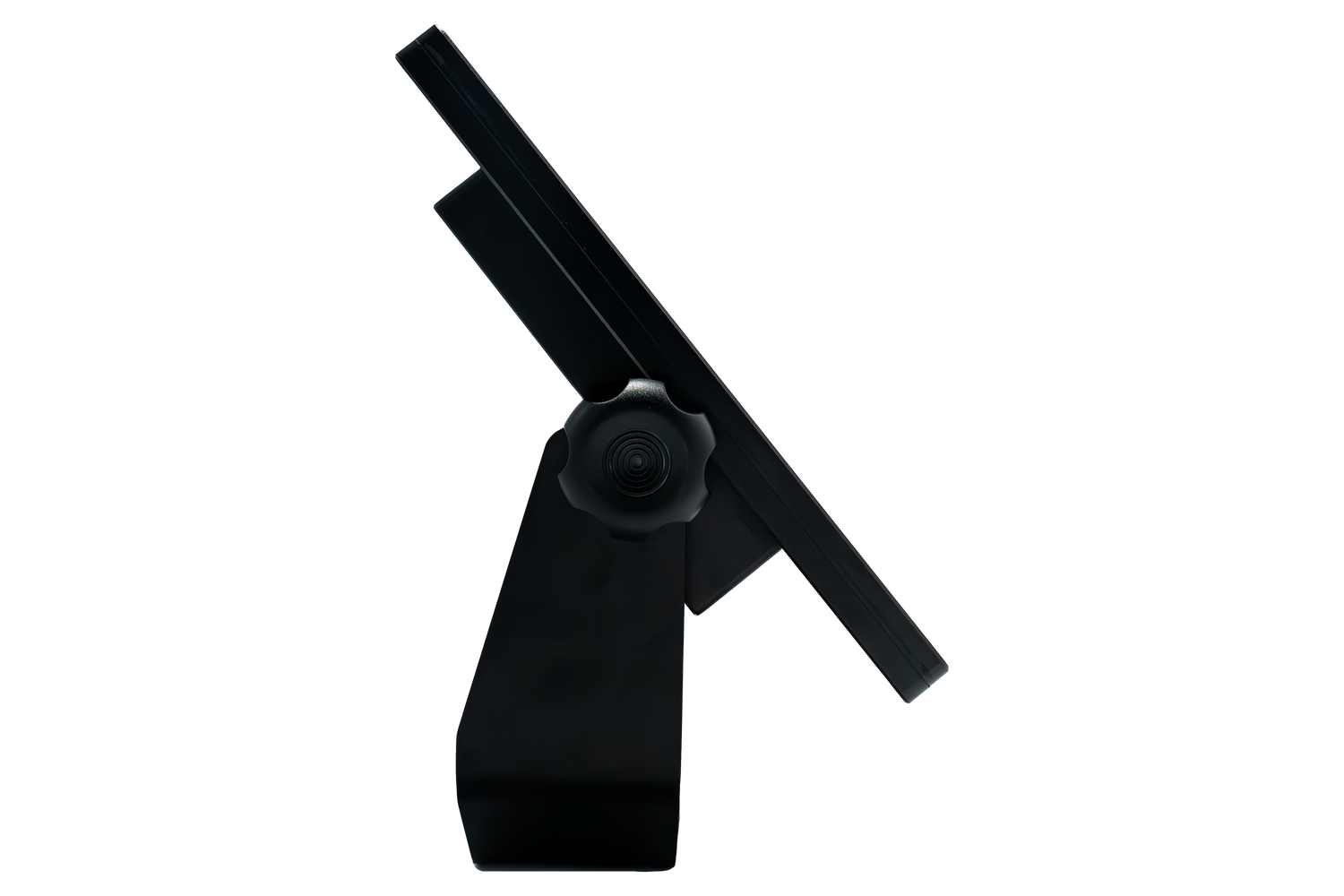

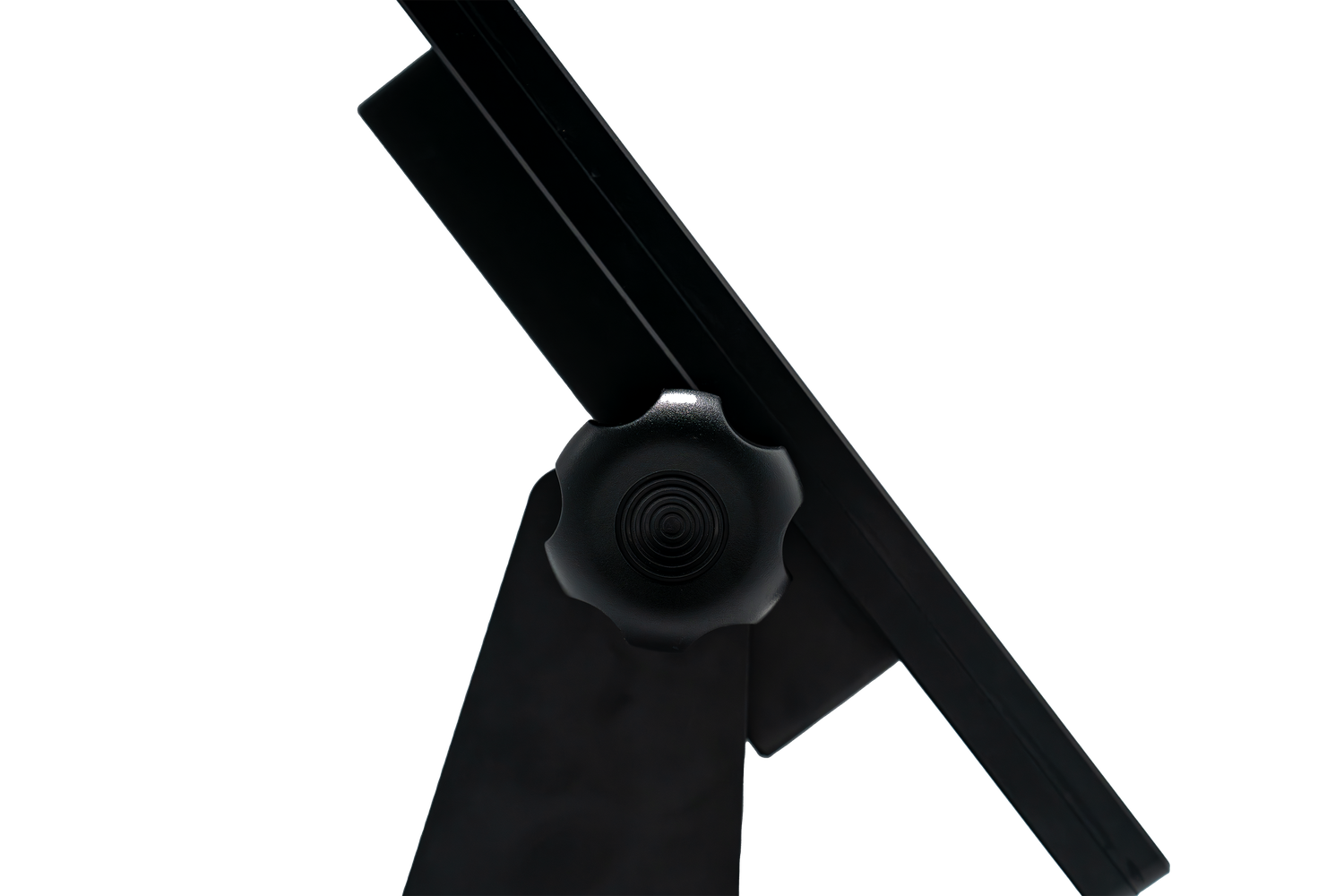

    Precision-engineered aluminium casing, designed specifically for the harsh demands of marine environments. Each unit is sandblasted, hard anodised, and finished with UV protection and anti-discolouration treatment to ensure long-lasting durability in sun, salt, and spray.

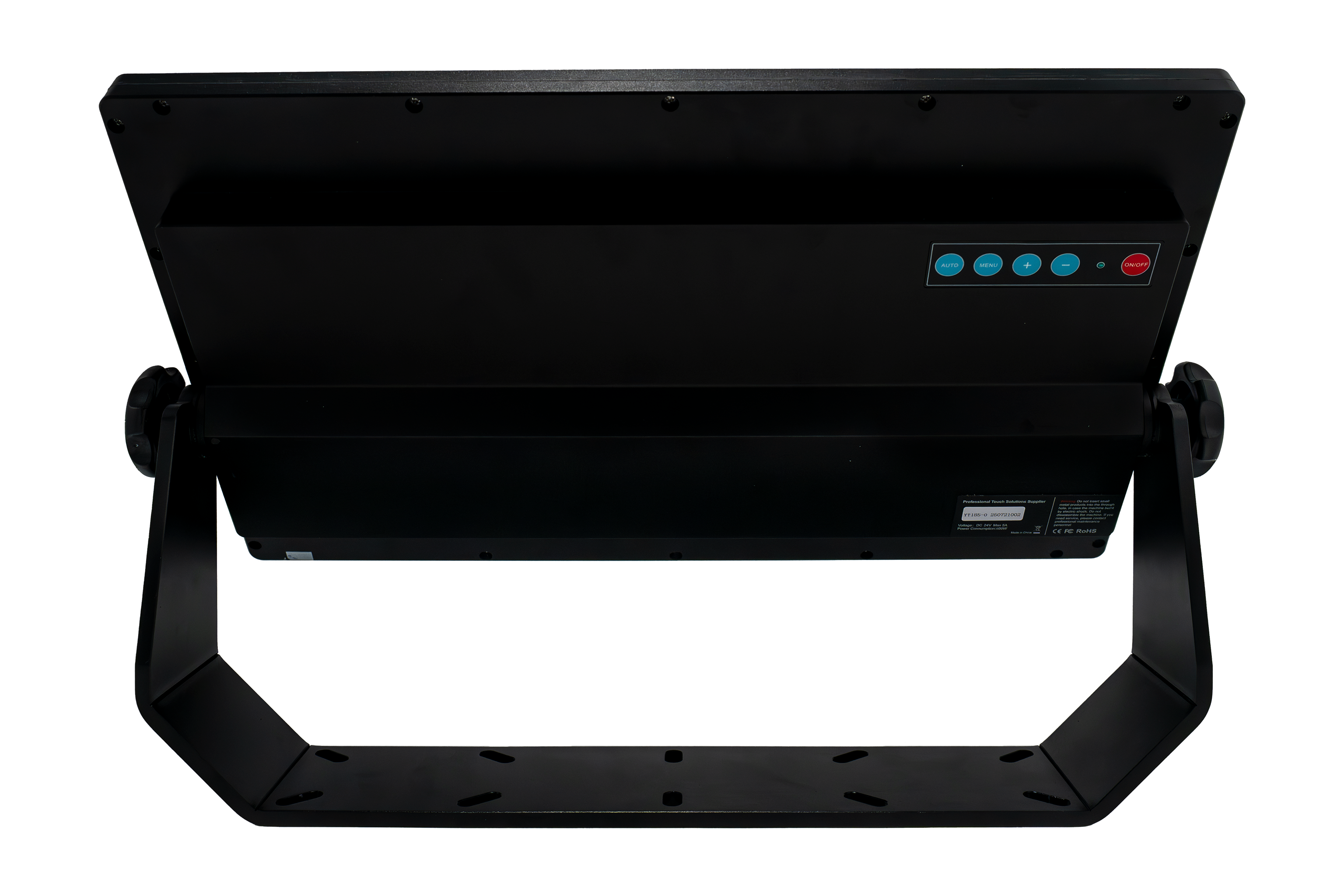

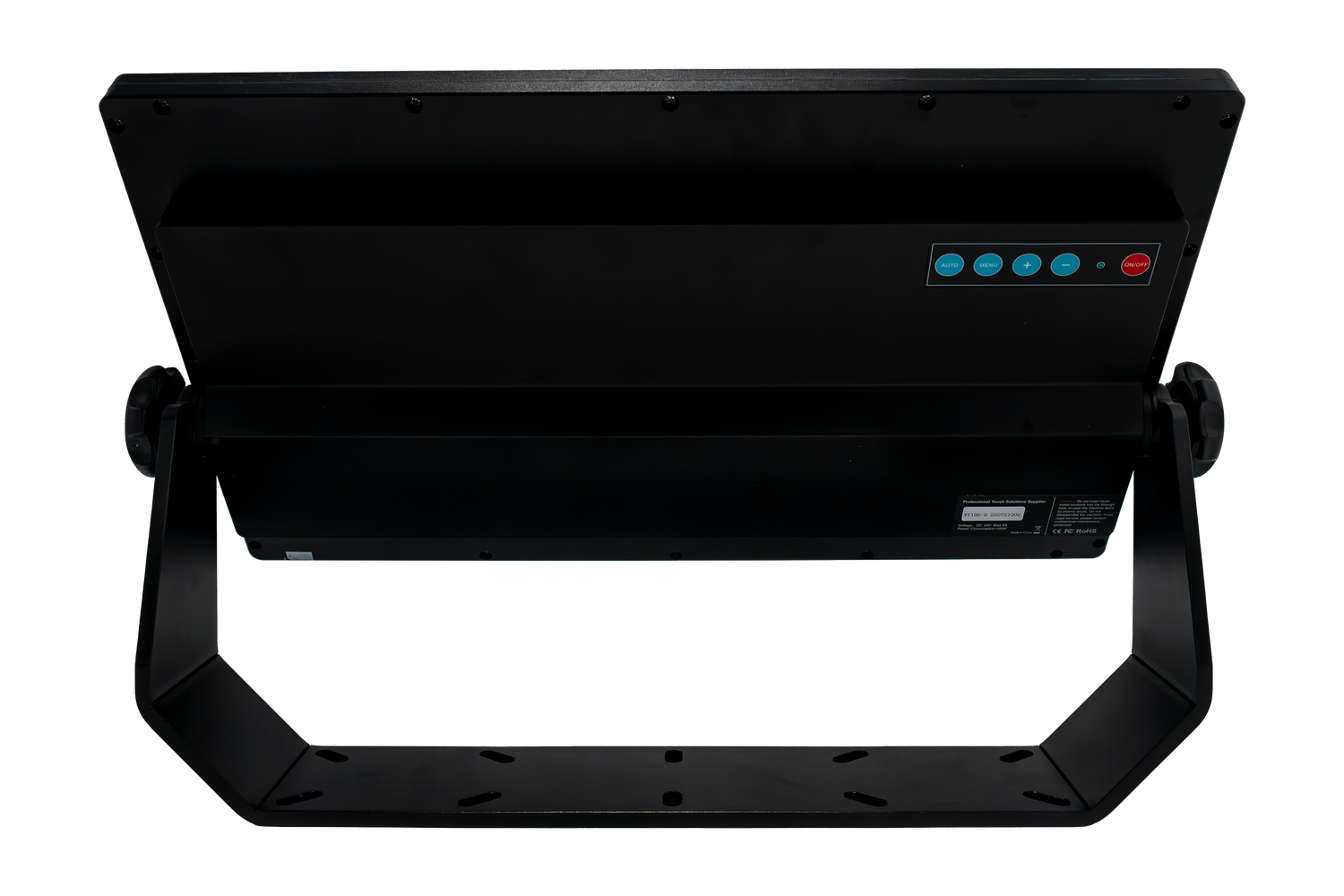

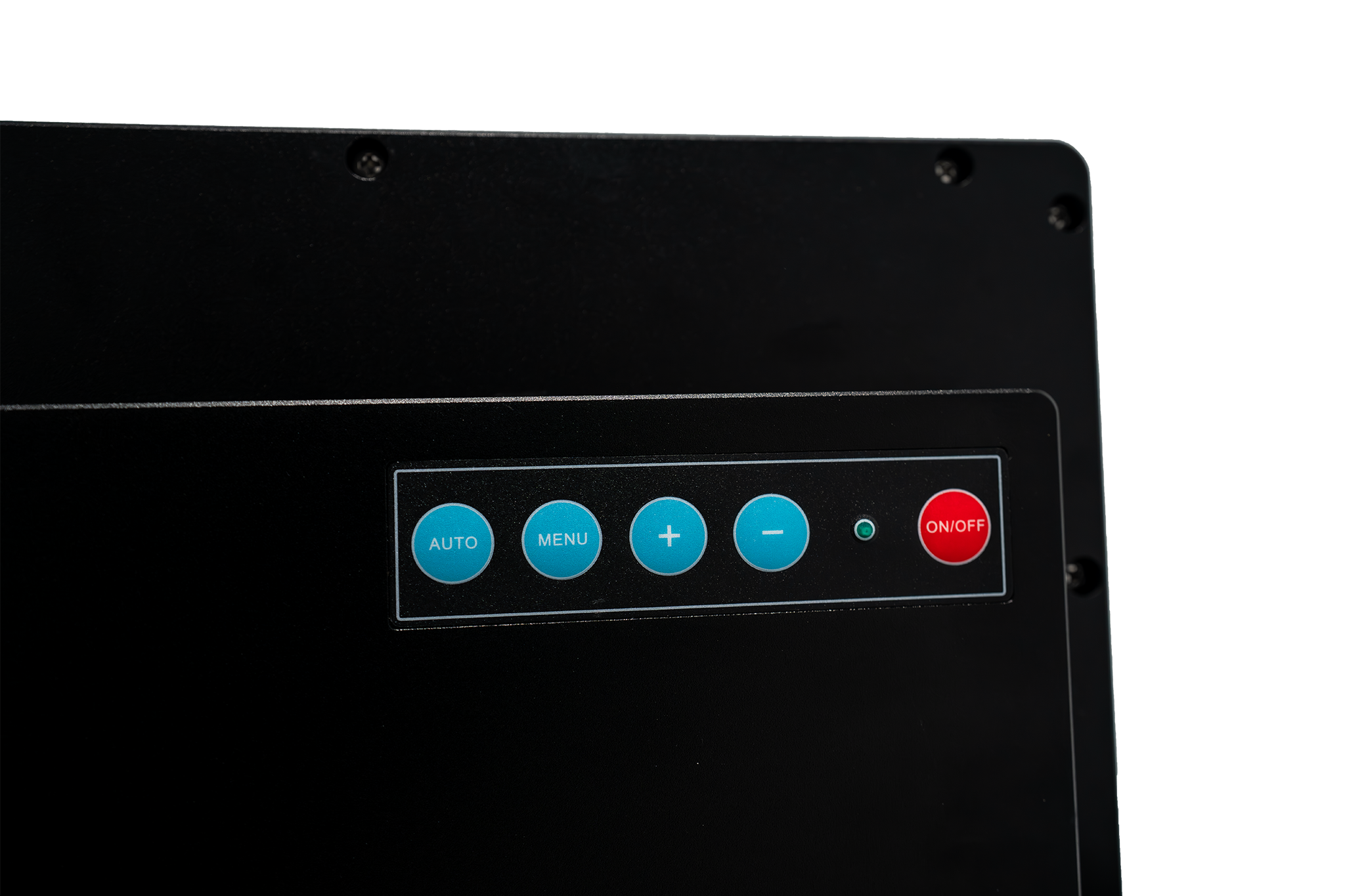

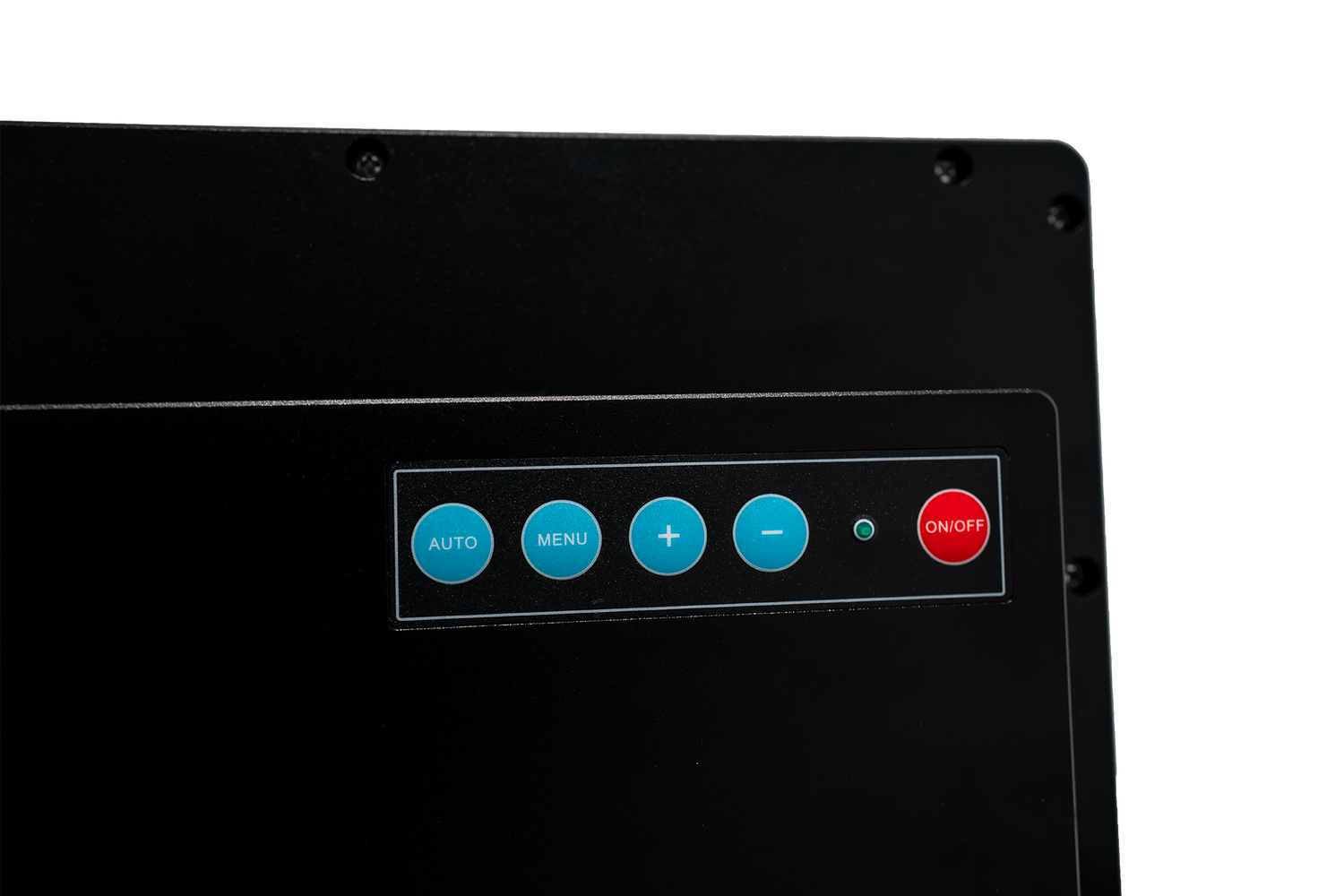

    The Dark Tide Marine display features 5 easy-access OSD keys, giving you full control over brightness, contrast, colour, and screen settings with just a touch

    The Dark Tide LCD screen is compatible with leading marine electronics, including Garmin GPS MAP 84 and 53 Series, plus the Echomap Ultra 2 16” (mirror only). Designed with versatility in mind, our smart display is built to integrate seamlessly with current and future marine navigation systems.
